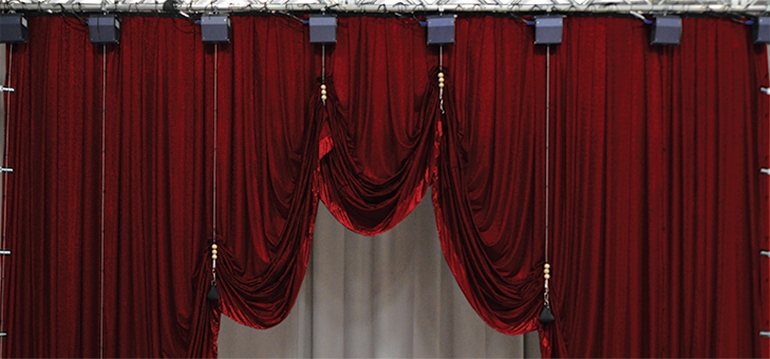

Back side view of our Wahlberg DMX Winches atop a Contour Curtain.
Our DMX light duty scenery automation products cut the cost and time involved with automating the programmed movement of lightweight scenic pieces. The products use DMX for control, in a manner that’s both sensible and practical.
Use the DMX Winches to lift the pick lines of a contour curtain individually, at one quarter the cost it might otherwise require. You can also use the winches for chandeliers, practicals, moon boxes, and other common set pieces.
The DMX Roll Drum is available in custom lengths up to 39 ft. Uniquley, the motor is fully located within the roll tube itself. This means no external, no bulky motor boxes, no drive chains, no limit boxes or timing belts.
The DMX Track Runner is a motorized scenery carrier for Triple E Unibeam track. The motor drives a pinion gear, which meets a rack mounted on the underside of the Unibeam. Electrical buss bars mounted to the track, mate with brushes on the Track Runner to provide power to the motor. A wireless DMX box completes the set up. The result is a fully independent, wireless drive carrier on the Unibeam, capable of pulling up to 220 lbs (100Kg).
The DMX Scenery Rotator resembles a mirror ball motor, but it’s more powerful. DMX offers speed control and rotational positioning, which allows you to stop the rotation anywhere you need. It has a 3/4in shaft for mounting scenic elements up to 110lbs (50Kg). Use it for rotating objects such as flats and signs, glassless mirror panels, doors, gates, conveyor belts, and clock-hands.
DMX Automation Products Overview. Thanks to Stage Directions Magazine for the footage.
