ADC Besteel® 170 Series Track


BESTEEL® is the most famous name in medium duty stage tracks. The Model 170 steel series is used on the majority of stage installations with medium or light weight curtains with lengths up to about 36 feet. On slightly heavier installations, Models 171-N or 171-R can be used. The cord operated 170 and 260 Series tracks cannot be curved. Model 173, which is for "walk-along" cyclorama and gym divider curtains can be outfitted with pre-manufactured curved sections, available below. Uses 1 carrier per foot.

Ordering a track system for drapery or scenery requires some expert advice. Get great advice and track system pricing quickly by submitting a request for a Custom Track System Quote online. Once your quote request is submitted, we’ll contact you to validate information and guide you through the selection process. Don’t worry if you don’t have all answers upfront. We’re here to help.

Learn more

Show Less

Instructions for Hand Operated Models: 170, 171-R, 171-N, 172

Instructions for Walk-Draw Models: 173, 173-R, 173-N Ceiling Mounted Track

Instructions for Walk-Draw Models: 173, 173-R, 173-N Suspended Installation

Call 800-223-1624 or email for CWANA full system pricing.

Parts and track channel can be ordered below.

Besteel® 170 Series Complete Track System (CWANA*)

BESTEEL® Model 170 is used on the majority of stage installations with medium or light weight curtains.
View Comparison
Price Ranges
$197.68

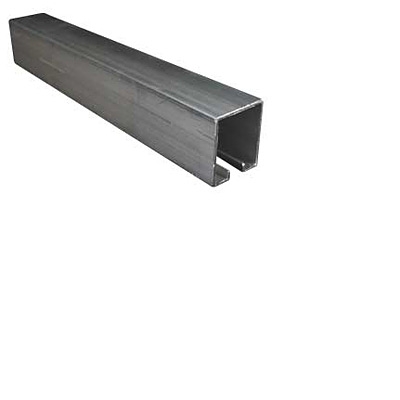

1700 Besteel® Track Channel

14 gauge galvanized steel.
View Comparison
Price Ranges
$141.50 - $469.20

1700A Besteel® Track Channel

Black 12 gauge aluminum, mill-finish. Holes can be drilled for direct ceiling attachment.
View Comparison
Price Ranges
$273.28 - $507.52

1752 90 Degree Curve for Besteel® Track

A 62" long (Approximately 3' x 3') 90 degree, 24" radius curve.
View Comparison
Price Ranges
$409.35

1755 45 Degree Curve for Besteel® Track

A 44" long (Approximately 2' x 2') 45 degree, 24" radius curve.
View Comparison
Price Ranges
$409.35

1483INV Inverted Leg Wall Bracket

Allows the tracks to be mounted closer to the ceiling.
View Comparison
Price Ranges
$62.07

1483UNI Universal Wall Bracket

Wall Bracket used with bi-parting or one way track systems. 280/170/140/132 series tracks.
View Comparison
Price Ranges
$70.65

1701 Single Carrier

Carrier spacing: 12 inches. Block constructed of plated steel with 2 polyethylene wheels.
View Comparison
Price Ranges
$5.77 - $7.17

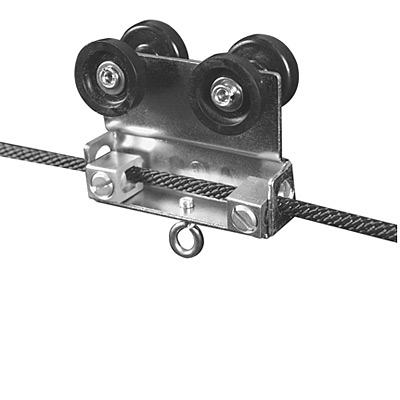

1702 Master Carrier

Block constructed of plated steel with 4 polyethylene wheels.
View Comparison
Price Ranges
$22.81 - $25.62

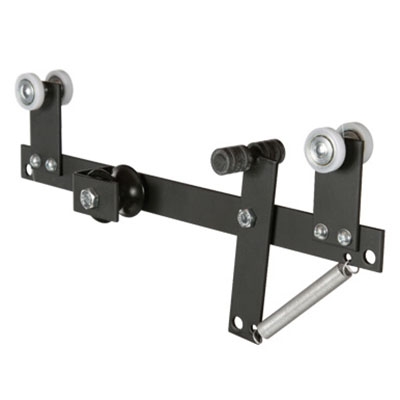

1702-B4 Master Carrier

Master carrier with a friction brake to prevent unwanted movement of the curtain or panel due to incidental contact.
View Comparison
Price Ranges
$400.47

1702P Master Carrier

Master carrier used along with the Model 1701P single carriers in Model 270P track systems .
View Comparison
Price Ranges
$39.65

1703 Live End Pulley

Equipped with 2 oil-impregnated sleeve-bearing steel wheels.
View Comparison
Price Ranges
$59.17 - $71.88

1703-AC Center Take-Off Live End

Center Take-Off Pulley for ceiling mounted track systems.
View Comparison
Price Ranges
$97.00

1703-A-S Center Take-Off Pulley

Center-Take-Off Live-End Pulley for suspended track systems.
View Comparison
Price Ranges
$159.97

1703-F Flying Live End Pulley

Used with flying type curtain machines.
View Comparison
Price Ranges
$276.65

1703-H Horizontal Live End Pulley

Routes the operating lines horizontally and at a 90 degree angle relative to the track as opposed to downward toward the floor like the standard 1703.
View Comparison
Price Ranges
$78.08

1704 Dead End Pulley

Equipped with 1 oil-impregnated sleeve-bearing steel wheel.
View Comparison
Price Ranges
$33.01 - $40.91

1706 Floor Pulley

Non-adjustable type with 1 oil-impregnated sleeve-bearing steel wheel.
View Comparison
Price Ranges
$48.31

1707 Lap Clamp

For attaching double-sectioned track at center overlap. For suspended tracks only.
View Comparison
Price Ranges
$11.43 - $15.94

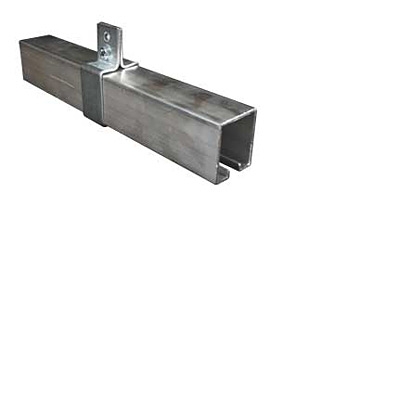

1708 Hanging Clamp

Recommended spacing: 6'. Steel, chain or cable suggested for track suspension.
View Comparison
Price Ranges
$5.00 - $9.80

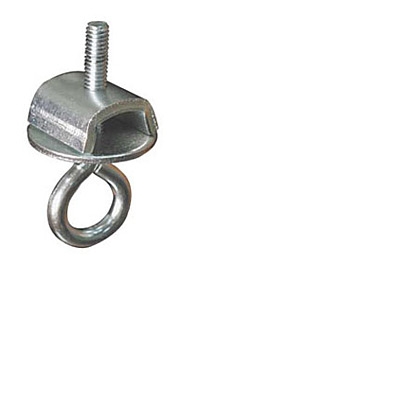

1709 End Stops

Prevents carriers from moving beyond selected position in track.
View Comparison
Price Ranges
$7.02 - $8.31

1713 Pipe Clamp

For 1" I.D. Schedule 40 pipe
View Comparison
Price Ranges
$10.27 - $11.60

1714 Pipe Clamp

For 1-1/4" I.D. Schedule 40 pipe
View Comparison
Price Ranges
$10.85 - $13.40

1715 Pipe Clamp

For 1-1/2" I.D. Schedule 40 pipe.
View Comparison
Price Ranges
$11.88 - $15.15

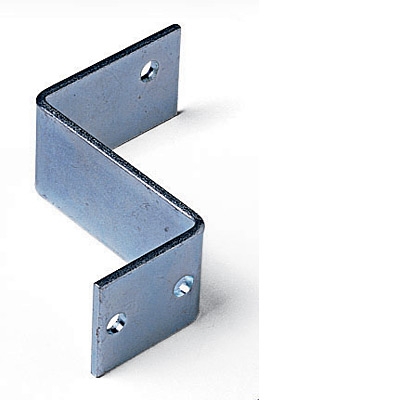

1721 Wall Bracket

3-7/8” long x 1-½” wide x 4-½” high
View Comparison
Price Ranges
$25.37 - $27.83

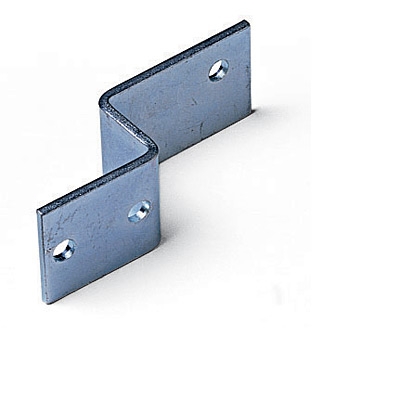

1722 Wall Bracket

1-7/8” long x 1-¼” wide x 4-½” high
View Comparison
Price Ranges
$23.77 - $25.94

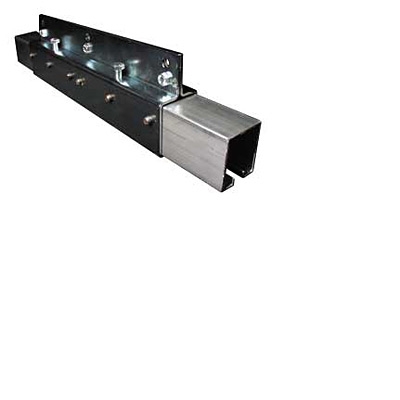

1724 Splice Clamp

Two piece 11 gauge clamp for joining track sections assuring proper alignment of track channels.
View Comparison
Price Ranges
$71.89 - $92.67

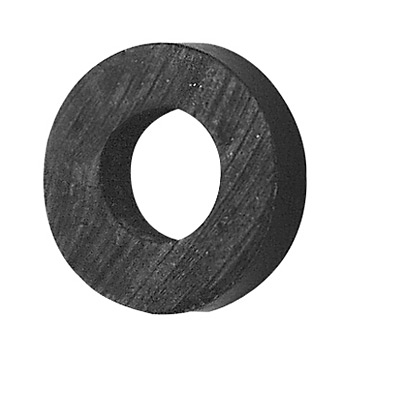

1726 Rubber Spacer

Rubber spacer for use with Model 1749 single carrier.
View Comparison
Price Ranges
$0.30

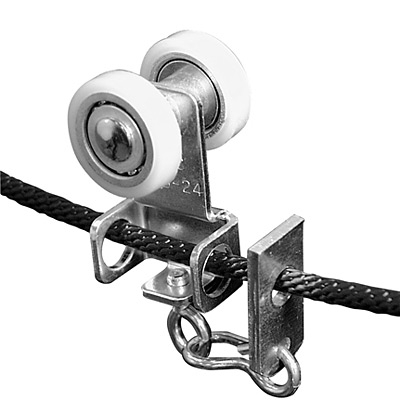

1733 Back Pack Guide

Provides sliding door effect. Prevents curtain from accumulating in gathers until track ends are reached.
View Comparison
Price Ranges
$3.66 - $6.79

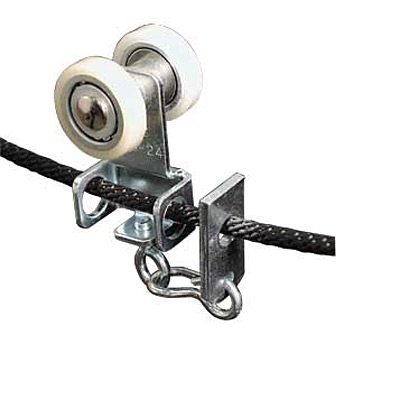

1734 Back Pack Guide

Provides sliding door effect (for machine operated tracks).
View Comparison
Price Ranges
$3.66 - $4.20

1735 Back Pack Guide

Provides sliding door effect (for machine operated tracks).
View Comparison
Price Ranges
$3.66 - $6.79

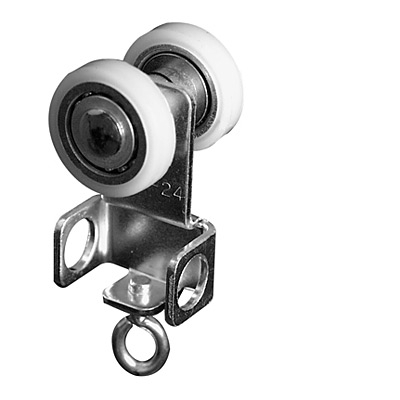

1737 Nylon Ball Bearing Single Carrier

Plated Steel body equipped with 2 nylon-tired ball-bearings wheels.
View Comparison
Price Ranges
$17.68 - $19.08

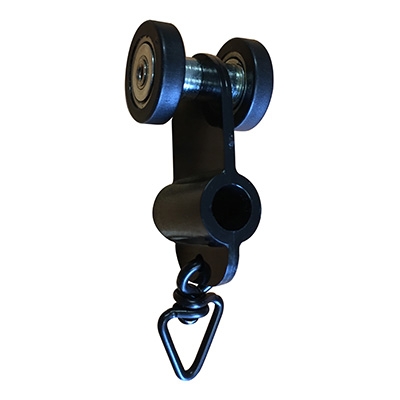

1737W Nylon Ball Bearing Single Carrier (Walk-Along)

Plated Steel body equipped with 2 nylon-tired ball-bearings wheels.
View Comparison
Price Ranges
$17.64

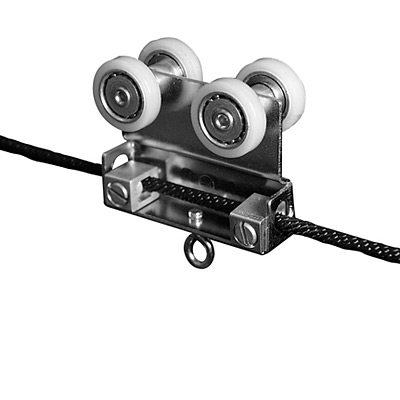

1738 Nylon Ball Bearing Master Carrier

Plated Steel body equipped with 4 nylon-tired ball-bearing wheels.
View Comparison
Price Ranges
$44.59 - $48.80

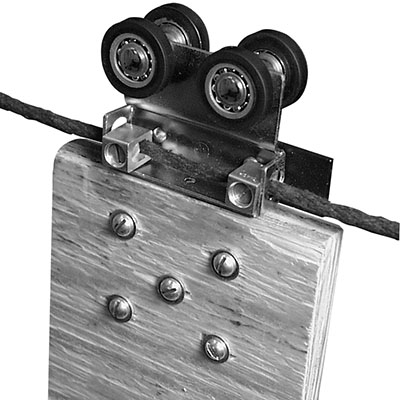

1740 Masking Master Carrier

A panel carrier designed for use primarily with side masking panels in movie theatres.
View Comparison
Price Ranges
$104.22

1748 Space Saver

For reducing curtain stacking area. Used in place of carrier.
View Comparison
Price Ranges
$6.86

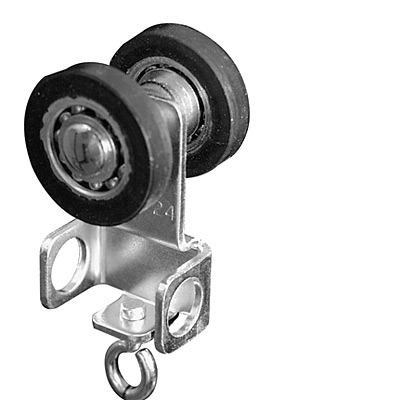

1749 Neoprene Ball Bearing Single Carrier

Plated steel body equipped with 2 neoprene-tired ball-bearing wheels.
View Comparison
Price Ranges
$27.10 - $28.67

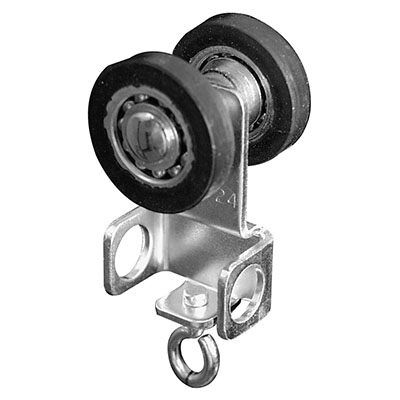

1749W Neoprene Ball Bearing Single Carrier (Walk-along)

Single carrier with body constructed of molded nylon supported from 2 neoprene-tired ball-bearing wheels and sold rivet.
View Comparison
Price Ranges
$24.93

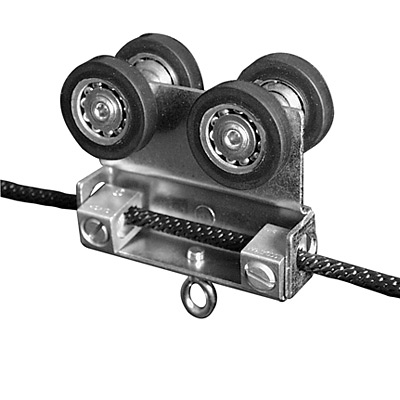

1750 Neoprene Ball Bearing Master Carrier

Plated steel body equipped with 4 neoprene-tired ball-bearing wheels.
View Comparison
Price Ranges
$64.20 - $65.03

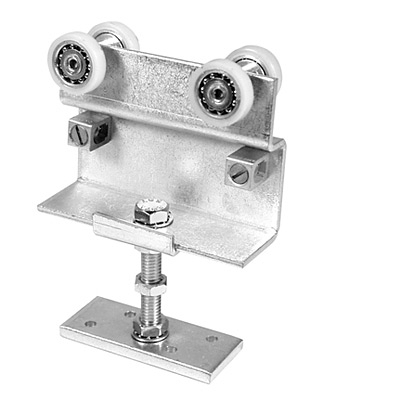

1751 Sliding Door Carrier

This carrier was designed to move heavier scenery panels.
View Comparison
Price Ranges
$224.32
