Roll Drums

Several Rose Brand DMX Roll Drums used to great effect to lower and raise projection screens in the NC State Arena. Great execution from our friends at Creative Visions.

With the new DMX Roll Drum, classic roll drop technology has been reinvented to make it easier to operate, faster to install, and drastically more affordable. Powerful AC motors with 16-bit DMX encoders are located inside the roll drum itself. Hanging the drum is simply a matter of mounting the half-clamps to your pipe, truss or overhead points. Provide power and DMX and the installation is complete. No drive chains, limit boxes, or other gadgets to connect. Roll drums as wide as 39 feet can be easily configured. Prices at just a fraction of what you'd pay for competitors' products! Call or email for more information and exact pricing for your custom-sized unit.
Download Data Sheet.
Download Manual.

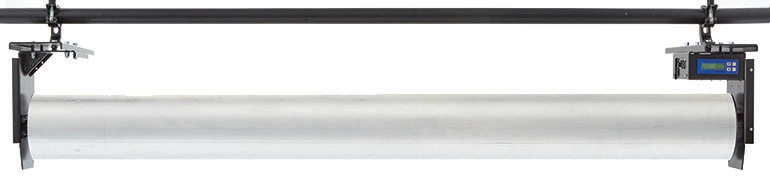

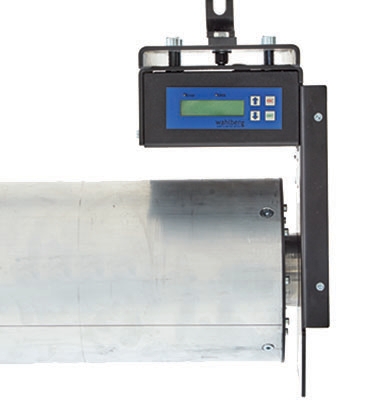

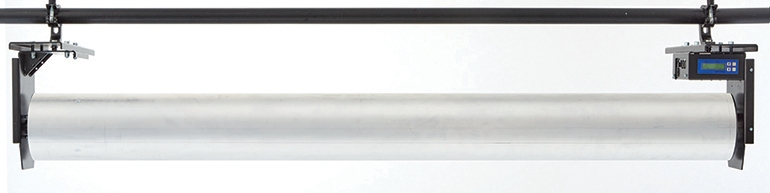

DMX Roll Drum

Up to 39' long; Up to 77 lbs Lift Capacity


Benefits:
  • Fast and easy mounting with no chains or limit boxes to install and tension
  • High speed operation for fast scene changes
  • Quickly configure multiple limit positions using precise 16-bit DMX control
  • Internal motor eliminates bulky drive boxes for a smaller profile and cleaner look
  • Mount multiple units end to end with minimal wasted space for lengths up to 39'
  • Sleeved drum mechanics configures to the size needed for your space
Specifications:
  • Drum Dimensions: 8in diam x 39ft (max)
  • 35 Kg (77lb) lifting capacity
  • 39in per sec. max speed
  • Max lifting height 15m (49ft, 59ft optional)
  • 5-pin DMX input and pass through
  • 6 Channels of DMX control
  • 16-bit DMX precision
  • 0.04in position accuracy
  • Powercon™ True1 input and pass thru
  • 208VAC input, 500 watt consumption
  • 12.5 x 13.9in motor and idle bracket

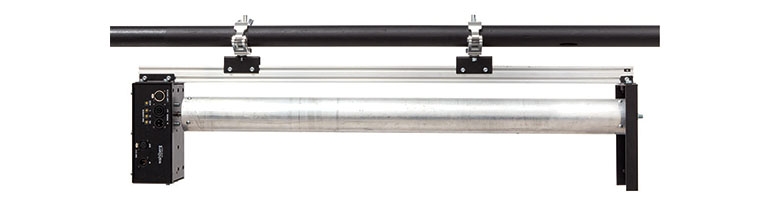

DMX Mini Roll Drum

Up to 12' long; Up to 15 lbs Lift Capacity

The DMX Mini Roll Drum can be easily built into scenery, retail windows, or architectural environments to provide a roll up solution for window blinds, draperies, projection screens or printed banners.

DMX control of speed, direction and positioning means easy configuration with unlimited programming options – even remote location control for broadcast studios.

Benefits:
  • Compact design easily fits into scenic, retail or architectural environments
  • Easily customized to the specific needs of your project
  • Fits into many scenic or architectural configurations
  • Saves time and can easily adjust speed, limits and trims
    from the control desk
Specifications:
  • 7 Kg (15 lb) lifting capacity
  • 10in per sec. max speed
  • 3ft - 12ft custom lengths
  • 3in Aluminum tube
  • 5-pin DMX input and pass through
  • 6 Channels of DMX control
  • 16-bit DMX precision
  • Powercon™ True1 input and pass thru
  • 120VAC input, 150 watt consumption
  • 5.9" x 8.9" x 3.5" motor box

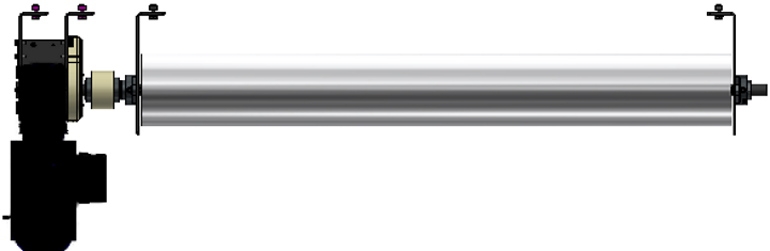

Heavy Duty Roll Drum

Up to 38' long; Up to 120 lbs Lift Capacity


For permanent installation in venues such as concert halls, auditoriums and conference centers, Rose Brand Motorized Roll Drums can be designed to the specifications of your space and your needs. Using an 8in diameter aluminum tube, mechanisms from 6ft to 38ft wide can be built – two sections spliced together for lengths greater than 24ft.

Control is via a simple push-button station, though additional options are available including key operation, wireless remote, dry-contacts or an advanced programmable touch screen. Contact Rose Brand to discuss the needs of your installation.

Benefits:
  • Custom Roll Drum available up to 38 feet wide with tube splices for easy shipping and storage. Mount the roll drum and motor using pipe clamps or threaded rod.
Specifications:
  • Push Button Control Station included; Additional control options include key operated station, wireless remote, dry contacts, or touch screen
  • Lifting Capacity: 120 lbs.
  • Lifting Height: 49 feet
  • Variable Speed: 30 in/sec
  • 120 V Single Phase 60 hz
  • Variable Frequency Drive

Learn more

Show Less

Custom Quotes

Speak to a technical sales associate for more information or to get a quote. They'll help you choose the roll drum that best suits your needs.

Call 800-223-1624 or email us about your project!
