Triple E UNIBEAM System


Heavy duty and silent track for premium installations.
UNIBEAM combines the versatility of the UNITRACK with the load-carrying ability of an "I" beam, therefore doubling as both a track and a fly batten. Large spans between pick-ups coupled with a standard size tee slot accepting universally available channel nuts make for fast and efficient installations. All Unistrut bracketry can be used with UNIBEAM curtain tracks.

UNIBEAM has identical dimensions to UNITRACK but is stocked in 20' lengths, so all UNITRACK carriers will work. Additionally, UNIBEAM offers a scenery carrier with a safe working load (SWL) of 848 lbs. for heavy-duty applications. It can be manually corded or driven by a TracDrive motor or domestic track machines. Since it can span long distances, a truss is not required.

Ordering a track system for drapery or scenery requires some expert advice. Get great advice and track system pricing quickly by submitting a request for a Custom Track System Quote online. Once your quote request is submitted, we’ll contact you to validate information and guide you through the selection process. Don’t worry if you don’t have all answers upfront. We’re here to help.

Learn more

Show Less

Triple E Safe Working Load Specs

Call 800-223-1624 or email for more information and to order full systems.

Parts and track channel can be ordered below.

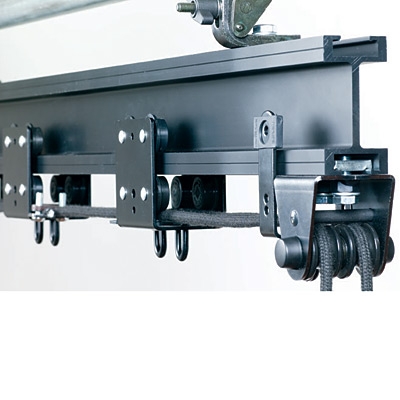

Unibeam Straight Track, 20' UBM 01

Heavy-duty and silent track for premium installations that can span long distances so truss is not required. In 20' lengths.
View Comparison
Price Ranges
$599.00

Remote Pendant for Tracdrive TRADP1

Pendant for the Tracdrive, E-Drive and the S-Drive.
View Comparison
Price Ranges
$432.25

2-Wheeled Carrier TRA 06

For straight track systems. Normal spacing is every 12" apart. 55 lb. SWL.
View Comparison
Price Ranges
$29.90

4-Wheeled Carrier TRA06C

For curved track systems. Normal spacing is every 12" apart. 55 lb. SWL.
View Comparison
Price Ranges
$44.25

Adjustable Floor Pulley Set (for straight systems) TRA 12

Weighted or screwed to the floor, the pulley is adjustable in height.
View Comparison
Price Ranges
$132.75

Cord TRA 27

Pre-stretched matte black polyester cord 5/16" in diameter used to operate all Triple E systems.
View Comparison
Price Ranges
$2.75

Curve Cord Guide Set TRA19 OR UBM19

Bolts to the top of the track and guides the operating cord around the top of the track system.
View Comparison
Price Ranges
$101.40

Curve Head Pulley Set UBM 21


View Comparison
Price Ranges
$284.55

Curve Master Carrier (Runner) H.D. TRA 20 HD

Same as TRA 20, but for use on track over 70' long and for motorized systems.
View Comparison
Price Ranges
$461.35

Curve Master Carrier (Runner) TRA 20

Same as master carrier (TRA 07) but with rope clamping arm that guides the cord through
View Comparison
Price Ranges
$257.00

Curve Return Pulley Set UBM 22


View Comparison
Price Ranges
$138.00

Curve Suspension Bracket TRA23 OR UBM23

Must be used on curved track systems between the track and other suspensions.
View Comparison
Price Ranges
$60.25 - $62.60

Double Cord Carrier Arm for TRA28AHD TRA 41ARM


View Comparison
Price Ranges
$146.20

Double Cord Master Runner TRA 41


View Comparison
Price Ranges
$401.05

Foot Stirrup Floor Pulley (for straight systems) TRA 11

Used on flown or movable track systems.
View Comparison
Price Ranges
$105.50

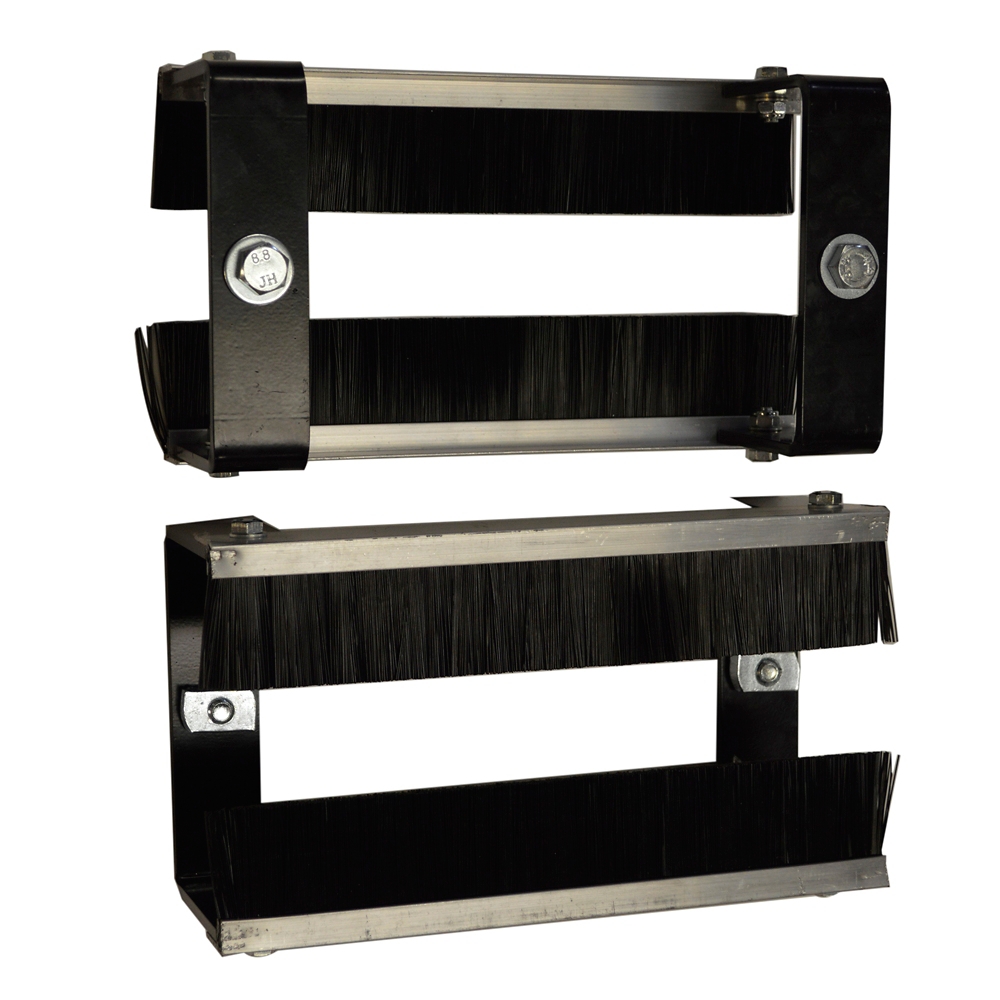

Frontfold Brush Assembly UBM08F

Unibeam Frontfold Brush Assembly UBM08F
View Comparison
Price Ranges
$142.15

Girder Clamp TRA 13

Used to suspend the track from I-beams.
View Comparison
Price Ranges
$74.70

Head Pulley UBM 09


View Comparison
Price Ranges
$141.90

Joint Set UBM 05


View Comparison
Price Ranges
$85.85

Line Pickup UBM 25


View Comparison
Price Ranges
$22.65

Master Carrier with Adjustable Rope Clamp TRA 07

For use on single tracks with overlap arms. Used with pulley set #TRA31.
View Comparison
Price Ranges
$136.65

Offset Plate UBM 17


View Comparison
Price Ranges
$29.85

Overlap Clip Set UBM 26


View Comparison
Price Ranges
$35.00

Pipe (Hook) Clamp UBM 14

Hook (Pipe) Clamp
View Comparison
Price Ranges
$75.35

Rearfold 2-Wheeled Carrier TRA06R

For straight track only. The curtain stacks offstage.
View Comparison
Price Ranges
$71.50

Rearfold tag with 8mm Hole TRA 08


View Comparison
Price Ranges
$32.90

Rearfold Tag with Pilot Hole

May be retrofitted to TRA-06 to make TRA06R or to TRA06C if used on straight track sections.
View Comparison
Price Ranges
$33.00

Return Pulley UBM 10


View Comparison
Price Ranges
$108.75

Scenery Carrier - Bottom TRA 28 B

Used with TRA 28 and TRA 28AHD to carry pieces varying from 1/4" to 2".
View Comparison
Price Ranges
$119.10

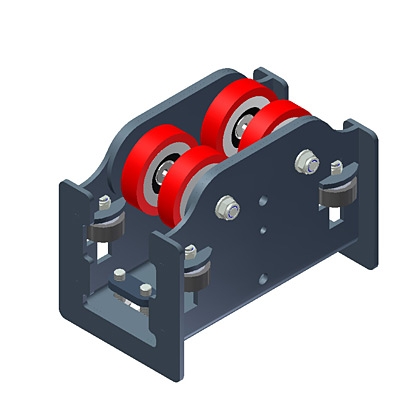

Scenery Carrier (Top Only) UBM 28A


View Comparison
Price Ranges
$523.90

Scenery Carrier Arm - Heavy Duty TRA 28 HD

Scenery Carrier Arm - Heavy Duty
View Comparison
Price Ranges
$181.20

Scenery Carrier Arm, Curved Track TRA 28 ARM

Used with carrier TRA28A when carrier is to be used on corded curved tracks.
View Comparison
Price Ranges
$96.90

Side Cord Centre Overlap Diverter UBM 33


View Comparison
Price Ranges
$180.30

Side Cord Guide UBM 32


View Comparison
Price Ranges
$134.00

Side Cord Head & Return Pulley Set UBM 34


View Comparison
Price Ranges
$274.00

Single Head Pulley UBM 31H


View Comparison
Price Ranges
$89.25

Single Return Pulley UBM 31R


View Comparison
Price Ranges
$81.65

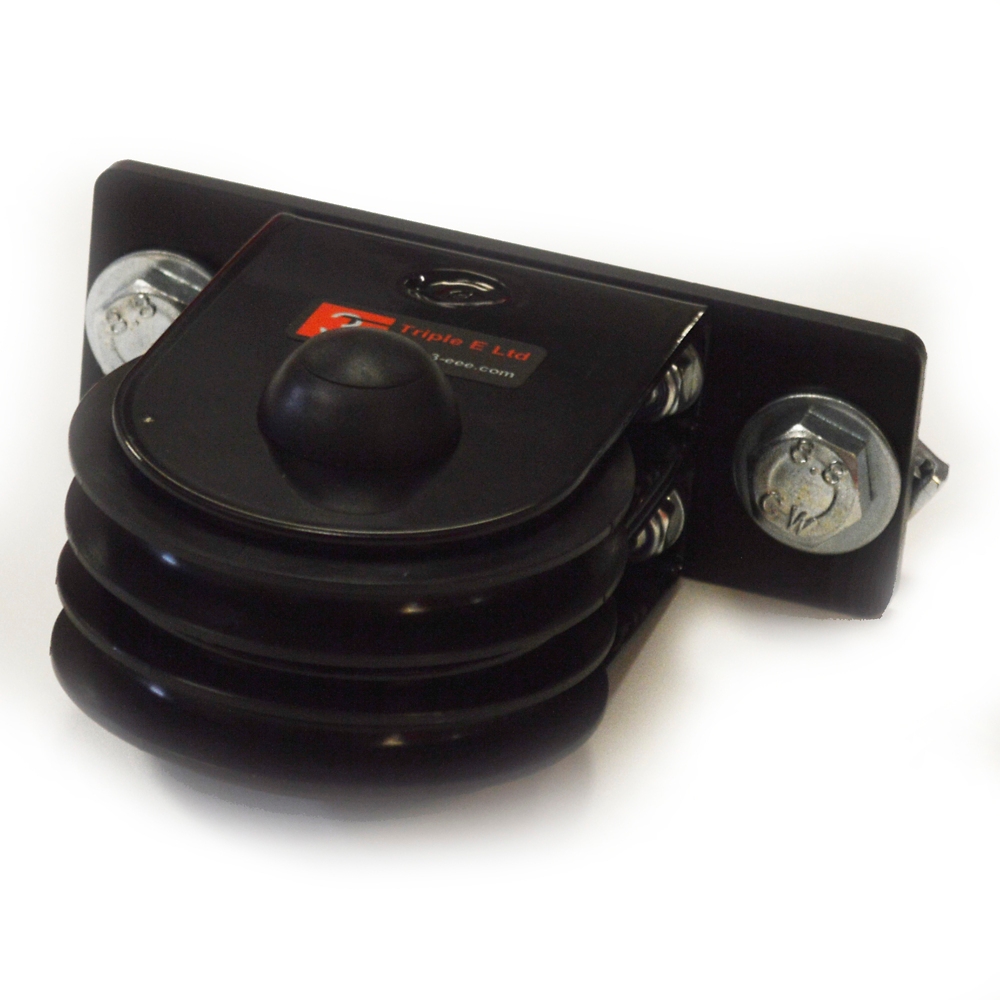

Single Track Head Pulley Heavy Duty UBM31HHD

Unibeam Single Track Head Pulley Heavy Duty UBM31HHD
View Comparison
Price Ranges
$190.85

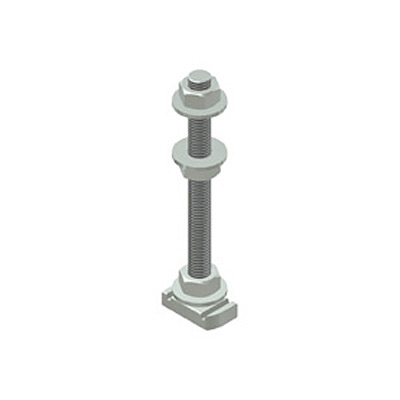

Studding UBM 18

5-7/8" long, includes nuts, channel nut and washers
View Comparison
Price Ranges
$23.80

Unibeam Endstop UBM 24


View Comparison
Price Ranges
$22.65
