DMX Winches

Wahlberg Winches come in sizes from 1Kg up to a powerful 50Kg load rating. Simple to operate via DMX. This family of winches is perfect for providing fast and easy light-duty scenery automation using DMX to set position and trim points, write movement cues, or create stunning motion “choreography.” Use multiple winches to create a fully automated contour curtain, where each lift line in the drape is controlled independently and can be programmed to different looks via DMX console.

A variant of the Winch 10, the Winch 10 LX allows electrical power to be run down the lifting cable enabling you to electrify the element being hung, such as a chandelier, lighted sign, or moon box. The Wahlberg Winches are not intended for hoisting line sets or other critical and load-bearing rigging elements.

Take me directly to the products below.


Overview of Wahlberg DMX Winches

Fully automated contour curtain using DMX Winches

Mirror Spheres Controlled by DMX Winches


How are Winches used?


  • Use with light-weight curtains, practicals, trick lines, and light rigging.
  • Use multiple winches to create beautiful choreography of floating elements, all synchronized and easily programmed via DMX.
  • Create interesting animations of fabric panels or other light-weight elements.
  • Fly-in chandeliers or other practical lighting without the use of battens and fly rails.
  • Drop in moon boxes, window units, mirrors, and picture frames.
A simple and affordable solution to automate a wide variety of scenic elements. Easily controlled via DMX from a lighting desk or stand-alone controller.

25m (82ft)

Winch Comparison Chart

Item Max Load Min Load Travel Speed Lift Wire Wire Length Max Length (Special Order) Input Voltage Notes
Winch 1 1 kg (2.2 lbs) 0.4Kg (0.75lb) 5-60 in/sec2mm wire rope12m (39ft)15m (49ft) 120v or 230vFastest Retraction Speed
Winch 5 5 kg (11 lbs)1Kg (2.2lb) 2-22 in/sec2mm wire rope10m (33ft)15m (49ft) 120v or 230v Twice as fast as Winch 10
Winch 10 10 kg (22 lbs)2.5Kg (5.5lb) 5-12 in/sec2mm wire rope10m (33ft)15m (49ft) 120v or 230v Perfect for rigging lightweight drapes
Winch 10 LX 10 kg (22 lbs)2.5Kg (5.5lb) 5-12 in/sec Kevlar + 2circ conductor10m (33ft)N/A 120v or 230v Powered kevlar cable provides 5A of electricity suspended unit
Winch 25 25 kg (55 lbs)1Kg (2.2lbs) 2-16 in/sec2mm coated wire rope10m (33ft)15m (49ft) 208v or 230v For medium duty loads with high speeds
Winch 25 X2 25 kg (55 lbs)1Kg (2.2lbs) 2-16 in/sec2mm coated wire rope10m (33ft)15m (49ft) 208v or 230v Dual cable picks prevent element from rotating while raising or lowering
Winch 50 50 kg (110 lbs)5Kg (11lb) 3.5-18 in/sec3mm wire rope12m (39ft)15m (49ft) 208v or 230v For heavier loads at lower speeds


Learn more

Show Less

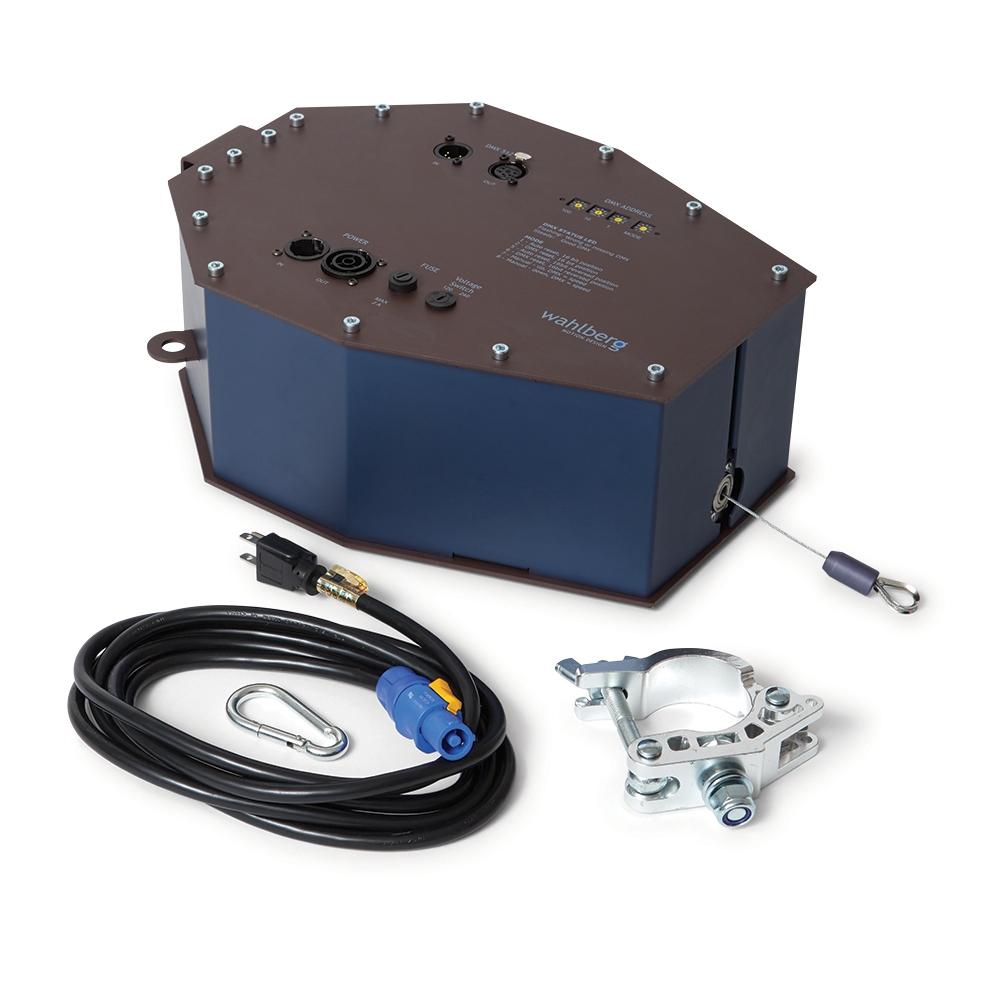

Wahlberg Winch 1

Light Duty, Fast DMX Winch, Perfect for small fast pick-ups of fabrics or other special effects.
View Comparison
Price Ranges
$2,400.00

Wahlberg Winch 3

Light Duty, Fast DMX Winch with a 3Kg (6.6 lbs) load limit which can be easily controlled via DMX.
View Comparison
Price Ranges
$2,450.00

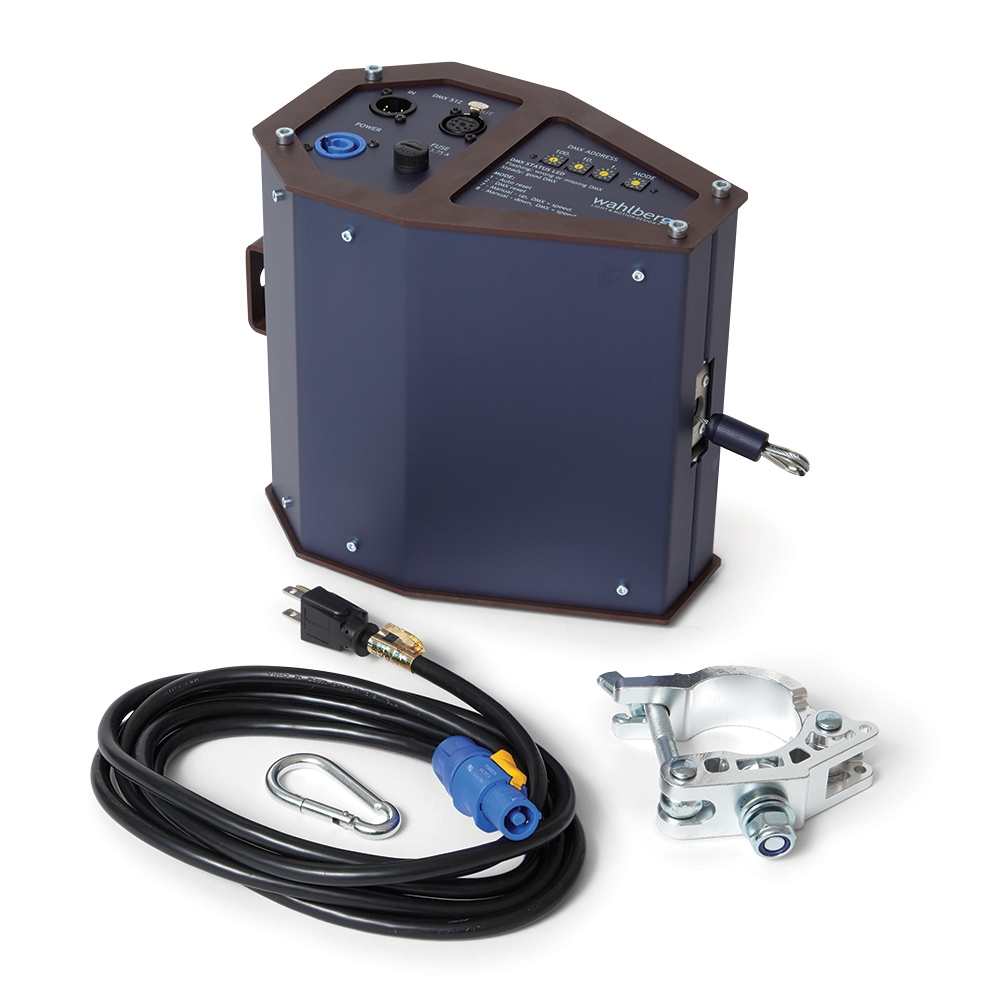

Wahlberg Winch 10

Light Duty, DMX Winch with a 10Kg (22lb) load limit which can be easily controlled via DMX.
View Comparison
Price Ranges
$2,450.00

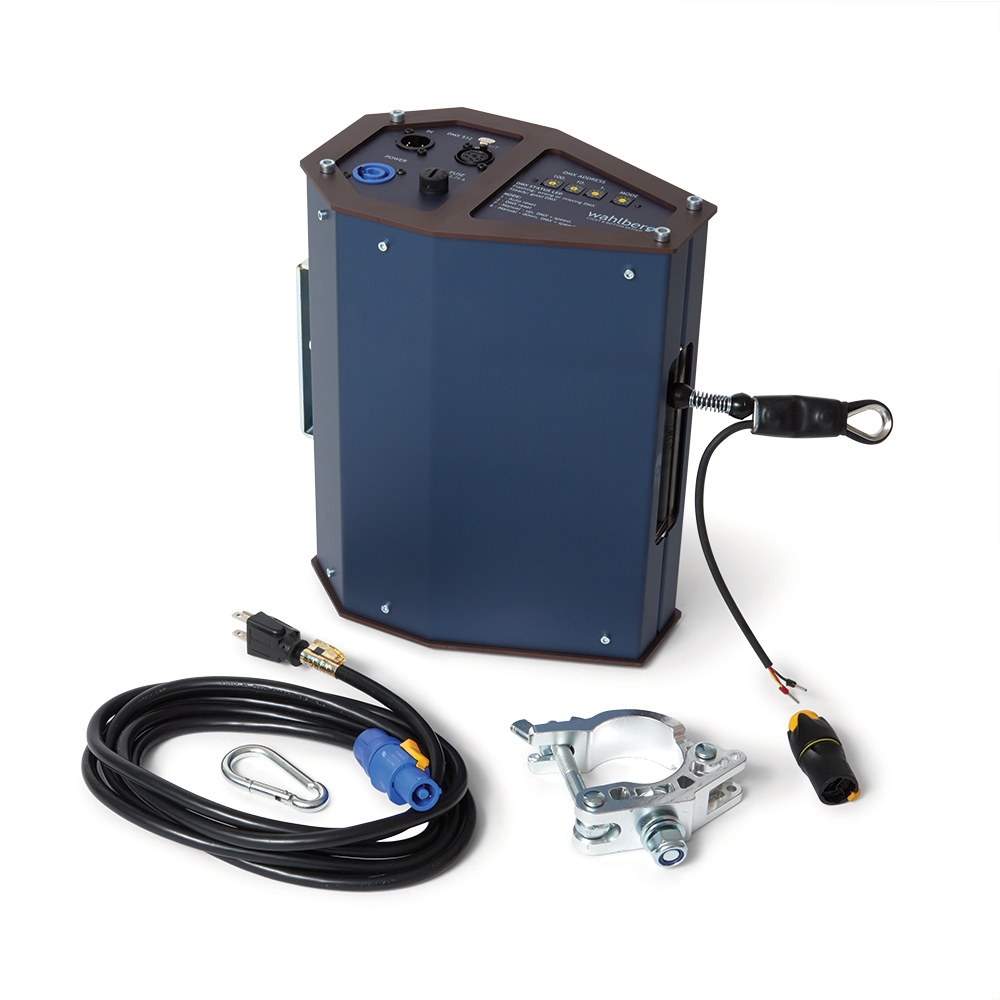

Wahlberg Winch 10 Cable

Light Duty, DMX Winch useful in any situation where you need to provide power to a scenic element that is being flown.
View Comparison
Price Ranges
$3,850.00

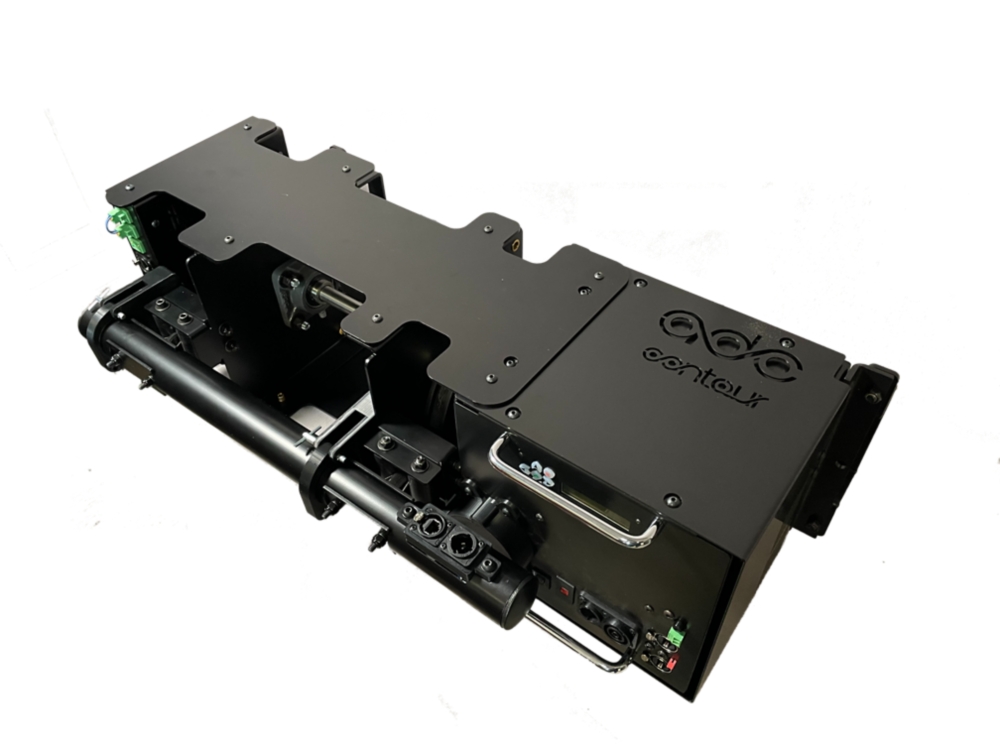

ADC ConTour Winch SDR X2 Trapeze Dual Lift Line System

The SDRX2 professional grade, zero fleet spotline winch has dual synchronized lift lines to prevent its load from spinning, while sending integrated power and 10/100 data down to power and control your scenic or lighting effect.
View Comparison
Price Ranges
$12,875.00

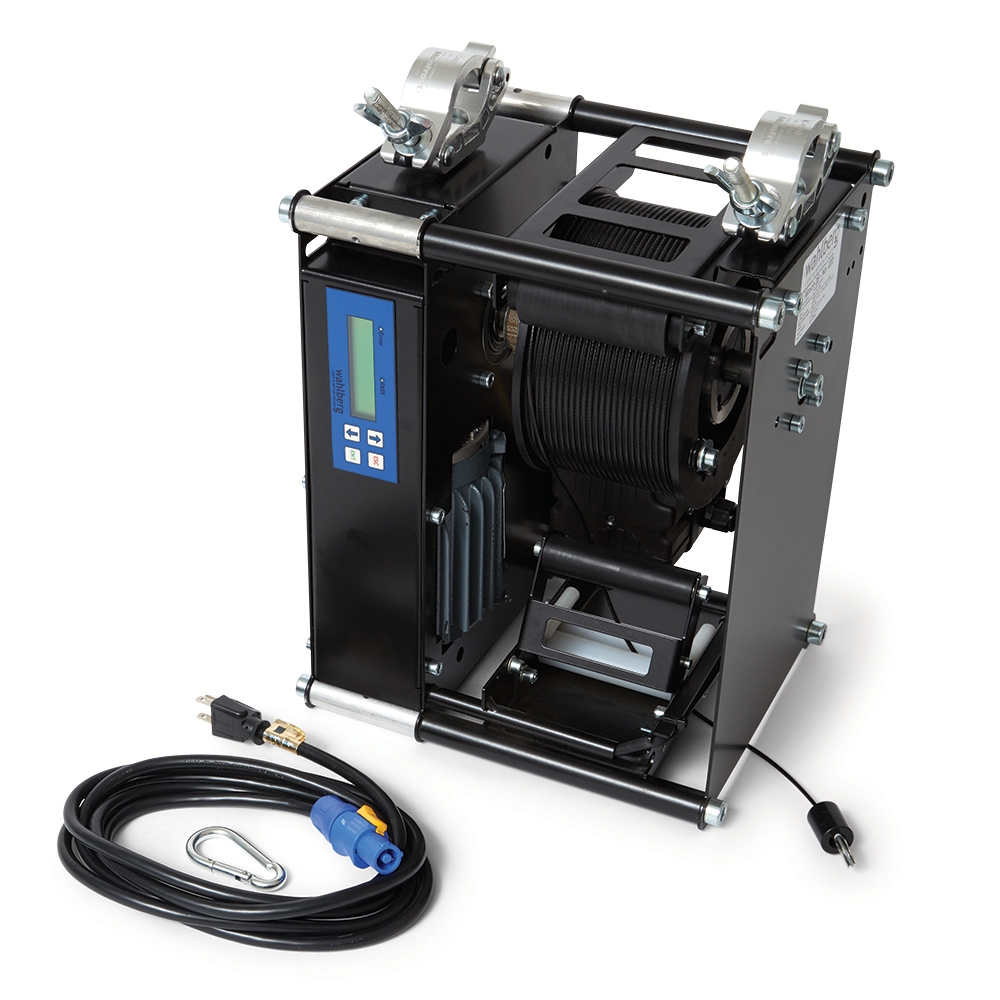

Wahlberg Winch 25

Medium Duty compact cable DMX Winch with a 25Kg (55 lb) load limit which can be easily controlled via DMX.
View Comparison
Price Ranges
$6,595.00

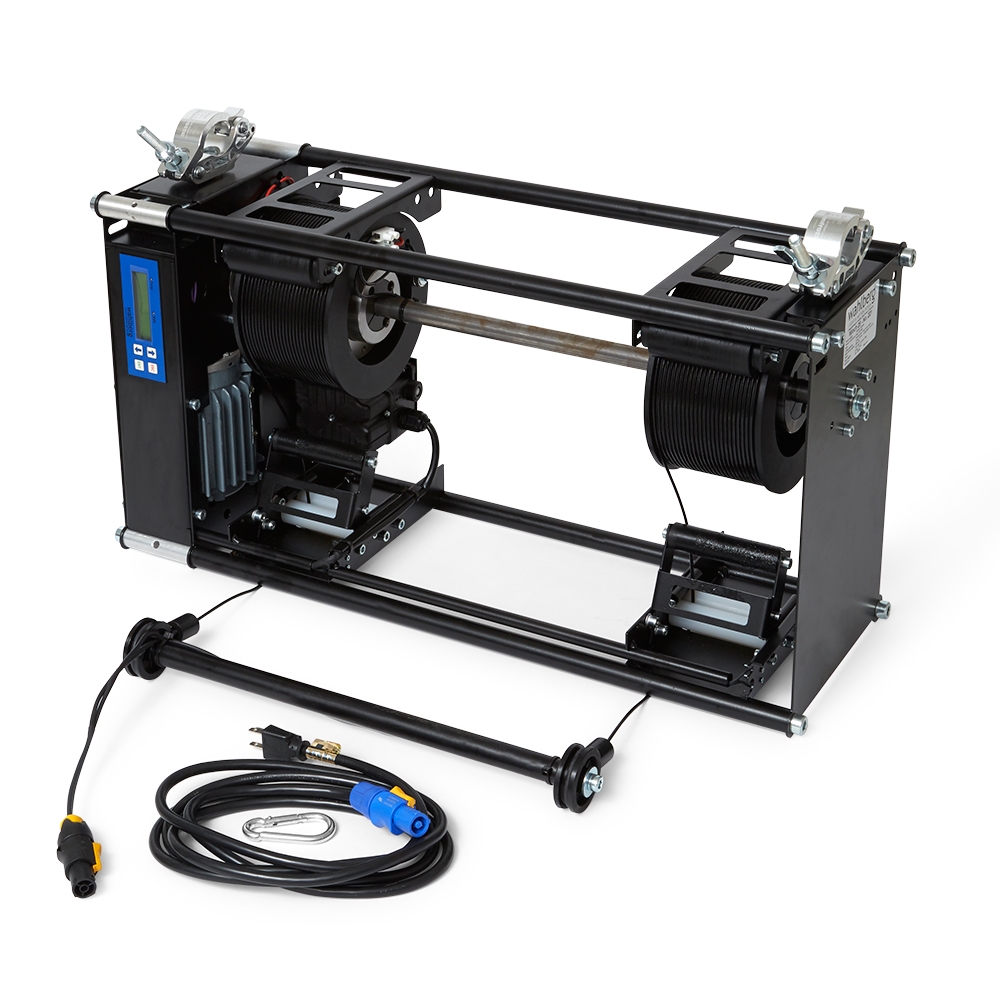

Wahlberg Winch 25 X2

Dual Cable Medium Duty DMX Winch using two active lift lines to maintain a set piece in a plane, eliminating any rotation or sway while in motion.
View Comparison
Price Ranges
$9,100.00

Wahlberg Winch 50

Medium Duty DMX Winch maintains a compact form while providing 50Kg (110 lb) of lifting strength.
View Comparison
Price Ranges
$8,750.00
