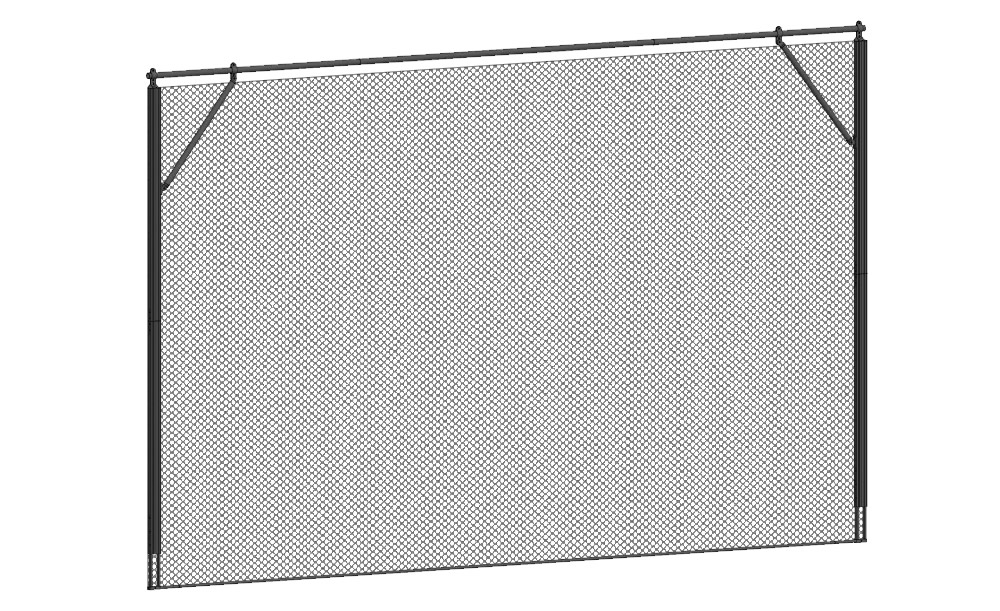

Stretcher Frame to Prevent Hourglassing

The Stretcher Frame System is designed to fix extreme “hourglassing” and puckering often encountered with scrims, bobbinettes, vinyl, projection screens, and muslin backdrops. Hourglassing occurs when fabrics naturally stretch vertically causing the sides to pull in, and in some cases, puckering occurs. When you can’t hide the hourglassing behind masking, or via clamp and stretch offstage, the Rose Brand Stretcher Frame System is the answer.

Features include:

  • Fast, easy attachment to batten
  • Flies out with backdrop
  • Adaptable to different sized backdrops
  • Drops can attach using hook & loop, ties or lacing methods
  • Frame is black anodized aluminum extrusion
  • Extrusion accepts standard strut hardware fitting
  • Purchase components or purchase preconfigured unit
  • Sleeved bottom pipe for smooth pockets

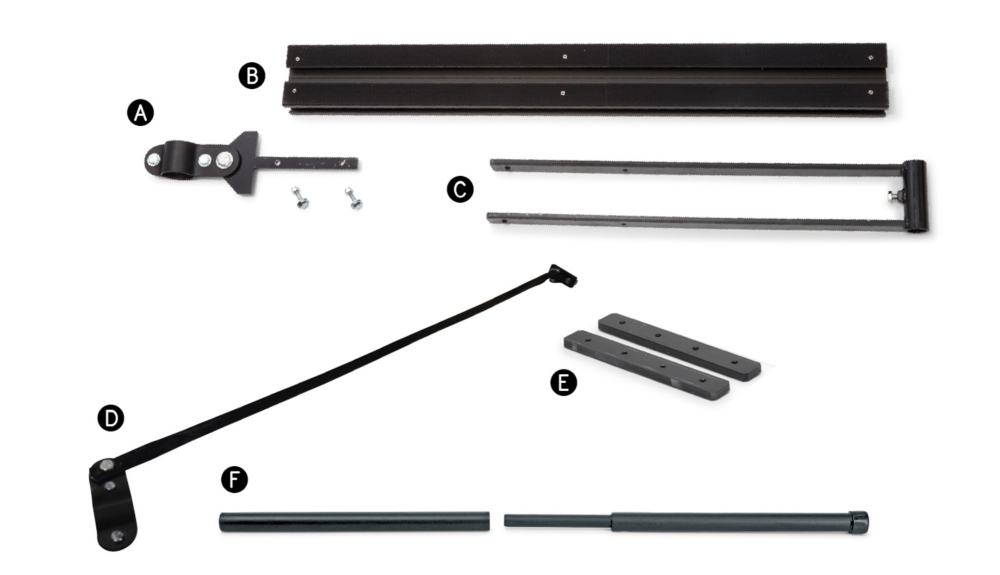

A Frame-Mounting Bracket with Batten Clamp$40
B Frame Extrusion - 2" x 4" x 20' $475
C Frame Trombone $145
D Frame Diagonal Support $100
E Frame Splice Set $75
F Bottom Pipe with internal sleeves - 1/2" Sch. 40 - 10' length $60

Available as components or as a set that we can configure for your needs.

Show less
Height Width
Up to 10'
Width
11' to 20'
Width
21' to 30'
Width
31' to 40'
Width each
additional 10'*
Up to 10' $1245.00 $1335.00 $1365.00 $1425.00 add $60.00
11' to 20' $1835.00 $1890.00 $1950.00 $2010.00 add $60.00
21' to 30' $2555.00 $2615.00 $2675.00 $2735.00 add $60.00
31' to 40' $3230.00 $3290.00 $3350.00 $3410.00 add $60.00
11' to 20' $1245.00 $1335.00 $1365.00 $1425.00 add $60.00

Pricing on this chart is for stretcher frames that are configured by Rose Brand to your soft goods dimensions. Units include:

  • Components cut to size.
  • Predrilled for assembly.
  • Parts ship preassembled when practical.
  • Hook and loop fastener adhered, then riveted on one 4” face.
*Call a Rose Brand Sales representative if you require quote for width over 80’
  • Top Pipes are NOT included – it is assumed frames are mounted on customer supplied top pipe.
  • While you can mount soft goods to the face of the frame using hook and loop fastener, standard practice is to wrap the frame and attach to the back side. This technique requires soft goods to be 8” wider than the finished width.
  • When ordering, please note if you do not want the hook and loop fastener
Show less
  • Drops can attach using hook & loop, ties or lacing methods

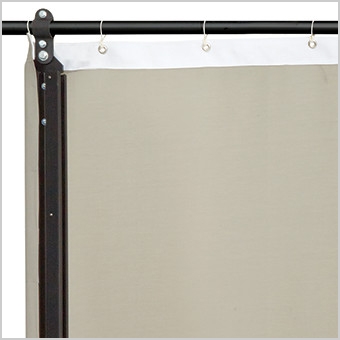

Hook and Loop Mount

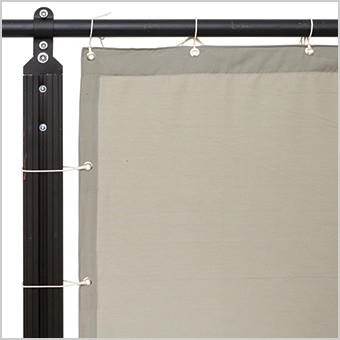

Side Ties

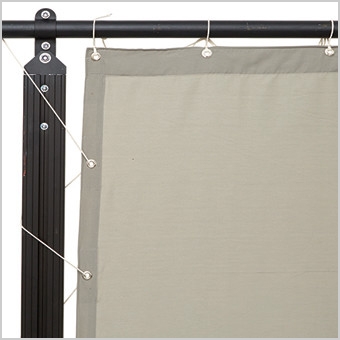

Side Lacing

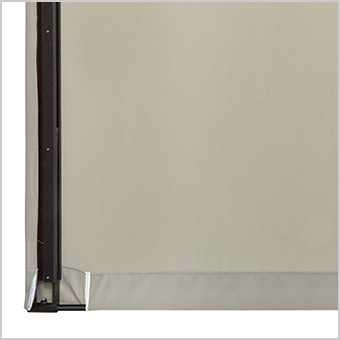

Bottom Detail

Show less

Learn more

Show Less

“No More Hourglassing”
Keeps your soft goods taut & square.

Also see Rose Brand Framing System for endless creative options.
