ADC 140 Curtain Track Rig-I-Flex® Series

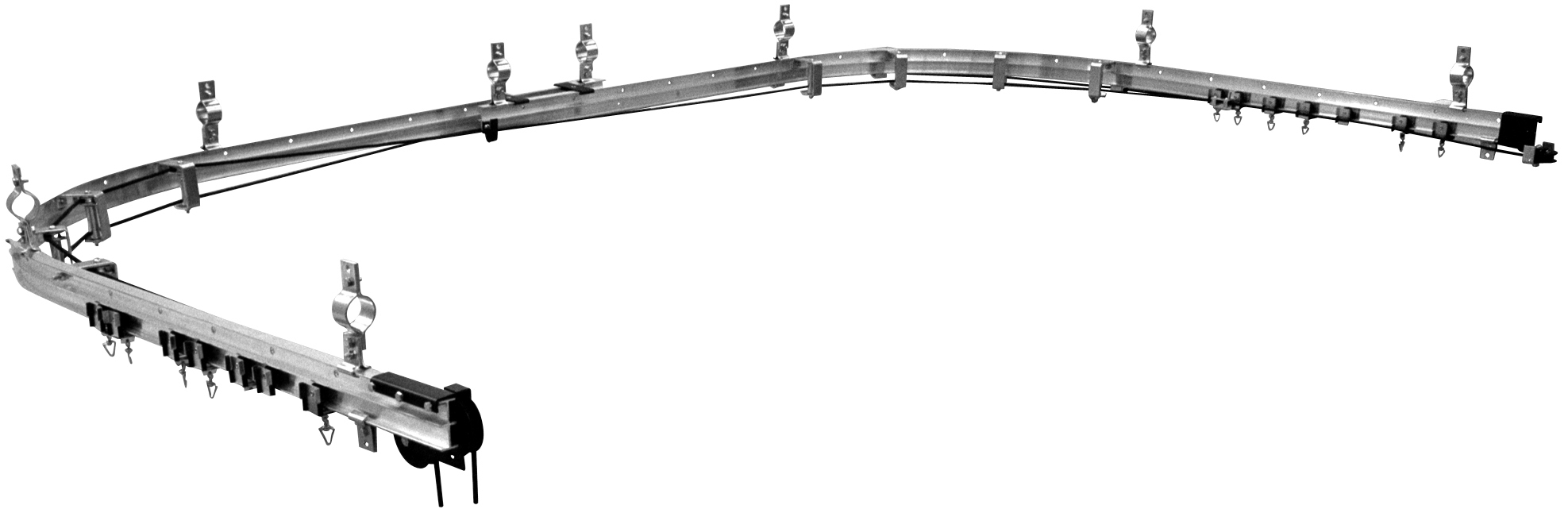

Model 140 Rig-I-Flex® track is a versatile aluminum I-Beam style track system, ideal for curved or straight, medium weight curtains. It is suited for installations anywhere a curved system is desired. Track can be curved in the factory or on the job site, to a minimum radius of two feet.
- Medium duty I-beam.
- 11 gauge extruded aluminum.
- Mill finish or black anodized finish.
- Custom curvable at the factory or on site.
- Switchers available for complex configurations.
- Walk-along, cord driven, or motorized.
Ordering a track system for drapery or scenery may seem daunting, but we're here to help. Get great advice and pricing by submitting a request for a Custom Track System Quote online with your best guess on specs. Once your quote request is submitted, we'll contact you to guide you through the selection process. You can also contact us at 800-223-1624 or email. See more info below the products for sale on this page.
140 Series Rig-I-FlexCategory
Compare Products
You have no items to compare.
Showing 61-69 of 69
close
Standard Switch, 143
Switch for Rig-I-Flex® 140. By pulling down on a pendant, the track channel and curtain shift.
3-Way Fan Switch, 143-3
Used to switch walk-along curtains from one track to any of three tracks.
4-Way Fan Switch, 143-4
Used to switch walk-along curtains from one track to any of four tracks.
5-Way Fan Switch, 143-5
Used to switch walk-along curtains from one track to any of five tracks.
Positioning Pole for Switch Devices, PP1
Used to change switching on track switches. (Except 143-CC Cross Switch.)
Cross Switch, 143-CC
Four-way crisscross switching. Operated with positioning pole, PP-2.
Parallel Cyc Switch, PTS-2
Used to switch between an "inner" and "outer" track. Used for cycloramas.
5" Trim Chain
Small piece of #8 jack chain that can be attached to carriers and used to trim curtain height.
ADC 140 Track Additional Considerations
Model 140 track systems use idlers and spindles to guide the operating cord along the curved path of the track. Curved tracks require more force than straight tracks and so we recommend motorized operation of curved systems. For complex installations, multi-track switchers are available to route curtains into different configurations and locations, making this system well suited for television studios and production stages. Specifications, drawings, installation, and support documents can be found in the 140 Series Submital Binder and 140 Series Installation Instructions
