ADC 220 Curtain Track TRAK EZE® Series

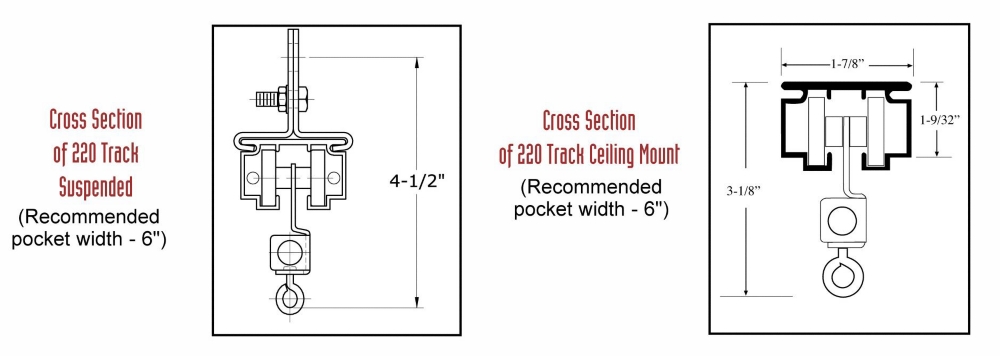

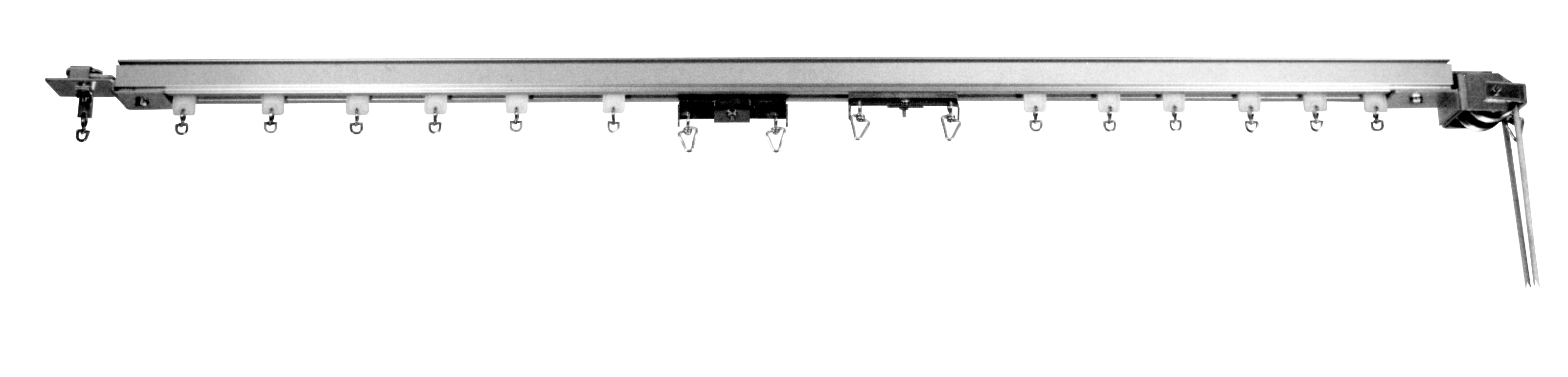

ADC 220 Trak-Eze® track is a low profile aluminum channel track that's ideal for straight installations of 32 feet or less. A unique feature of model 220 is that the cord can be completely concealed in the track making it perfect for hospitality installations and any place a clean architectural look is desired. Less than 1-1/2” high, model 220 track can be mounted directly to the ceiling structure or recessed flush to the ceiling.
- Medium duty channel.
- 16 gauge extruded aluminum.
- Clear anodized or black powder coated finish.
- Straight applications only, up to 32 feet long.
- Adjustable overlap on single track.
- Can be recessed into a finished ceiling.
- Walk-along or internal corded operation.
Ordering a track system for drapery or scenery may seem daunting, but we are here to help. Get great advice and pricing by submitting a request for a Custom Track System Quote online. Once your quote request is submitted, a Rose Brand or ADC expert will contact you to guide you through the selection process. You can also contact us at 800-223-1624 or email.
Specifications, drawings, installation, and support documents can be found in the Submital Binder and Installation Instructions.
220 Series Trak-EzeCategory
Compare Products
You have no items to compare.
Showing 1-20 of 21
close
Trak-Eze® Track Channel, 220
Low profile, medium duty, 16 gauge, extruded aluminum U-channel curtain track.
Ball Bearing Single Carrier, 2201
Nylon ball-bearing wheels provide quieter and easier operation than a standard single carrier.
Ball Bearing Master Carrier, 2202-B
Nylon ball-bearing wheels provide quieter and easier operation than a standard master carrier.
Tandem Carrier, 2202-T
Provides additional overlap. Rolls in single runway behind master carrier.
Ball Bearing Tandem Carrier, 2202-BT
Provides additional overlap. Rolls in single runway behind master carrier.
Leg Master Carrier, 2202-L
Master carrier with 5.5" arm used to hide the dead end pulley on one way draws.
3" Tension Floor Pulley, 2865
Standard spring tension floor pulley. Provides constant cord tension.
Detachable Floor Block, DFB
Used in installations where the track needs to be flown out.
Splice Clamp, 2224
Clamps used to join to sections of Trak-Eze® 220 track. For suspended tracks only.
End Stop, 2209
Prevents Trak-Eze® 220 carriers from moving beyond center overlap and end of tracks.
End Stop for Walk-along, 2209-W
Prevents Trak-Eze® 220 carriers from moving beyond center overlap and end of tracks.
Hanging Clamp, 2208
Used with Trak-Eze® 220 track. Space every 5' with more in stack areas.
Projection Bracket, 2163
Used to wall mount smaller tracks, such as Specifine® 113, and Trak-Eze® 220.

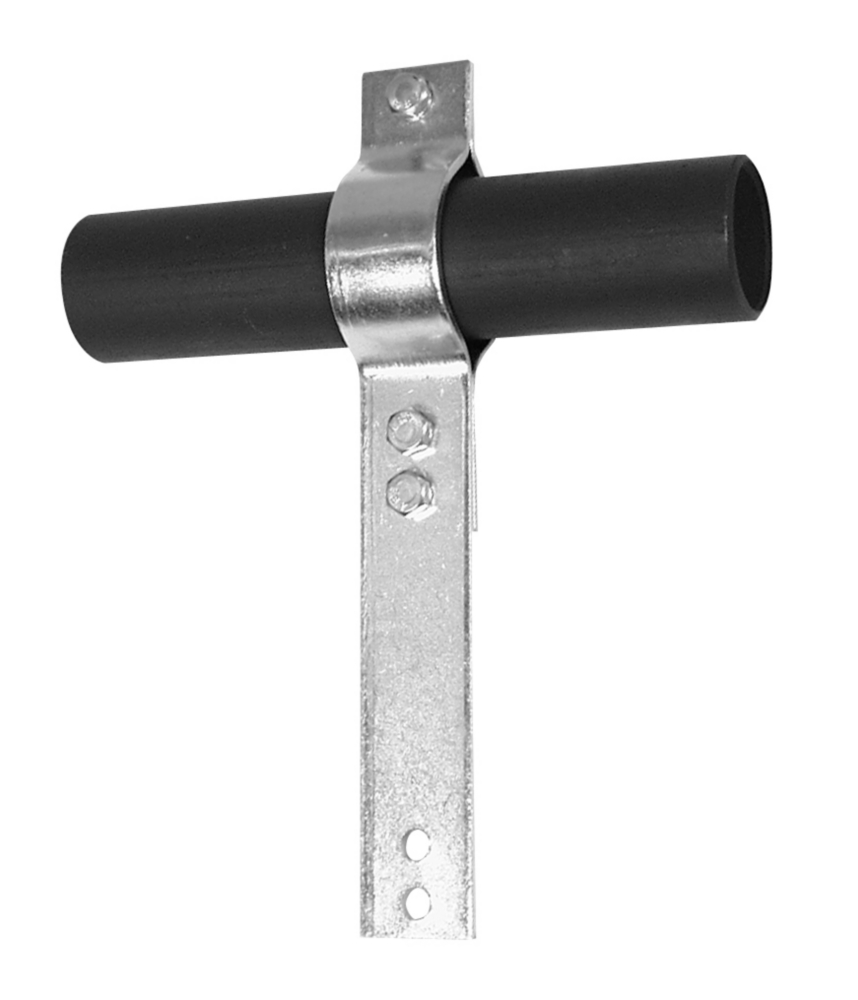

4" Suspension Strap, 1478
Straight steel strap. Used to attach medium weight tracks to parallel pipe.
4" Twist Strap, 1481
90º twisted steel strap. Used to attach medium weight tracks to perpendicular pipe.
Threaded Rod Adapter, 1408-A
This bracket connects to a hanging clamp and allows suspension of larger tracks.
