SpanFrame™

SpanFrame™ is a modular framing system that uses a structural extrusion to simplify the design, construction, and installation of large open frames and 3D shapes. It's perfect for large projection screens and printed graphics! It can also provide structure for tables, floors, walls and more.

SpanFrame is unique in its ability to span up to 20 feet with minimal deflection, and the extrusion accepts a wide variety of connection hardware, including industry-standard strut nuts. Easy to splice, connect and attach, the possibilities for using SpanFrame™ are virtually limitless.

See SpanFrame Technical Drawings (PDF)

Call 800-223-1624 or email for more information or to order.

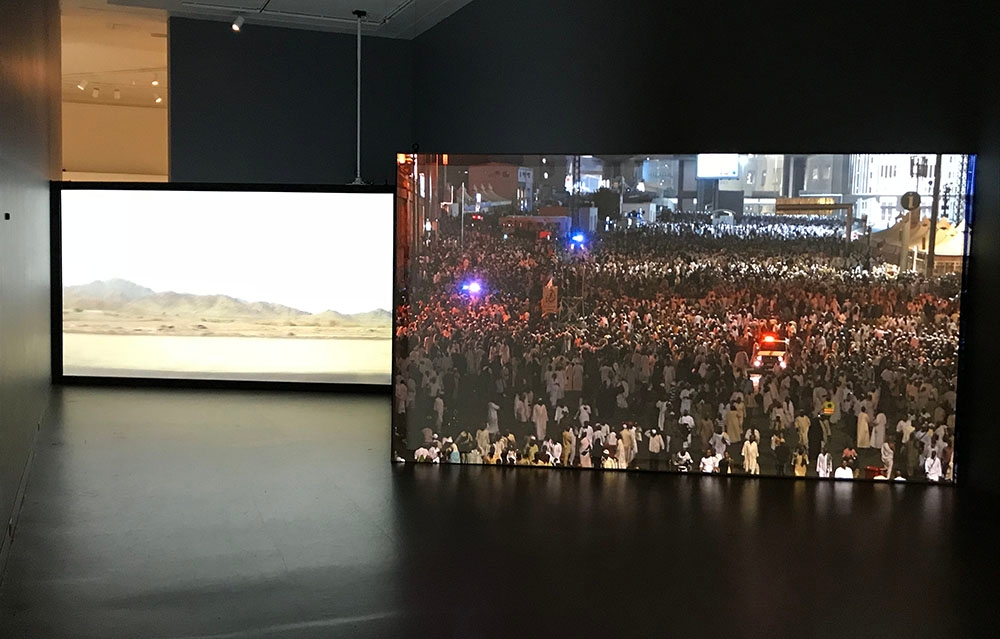

SpanFrame™ housing projection screens at The Brooklyn Museum

Key Features & Benefits

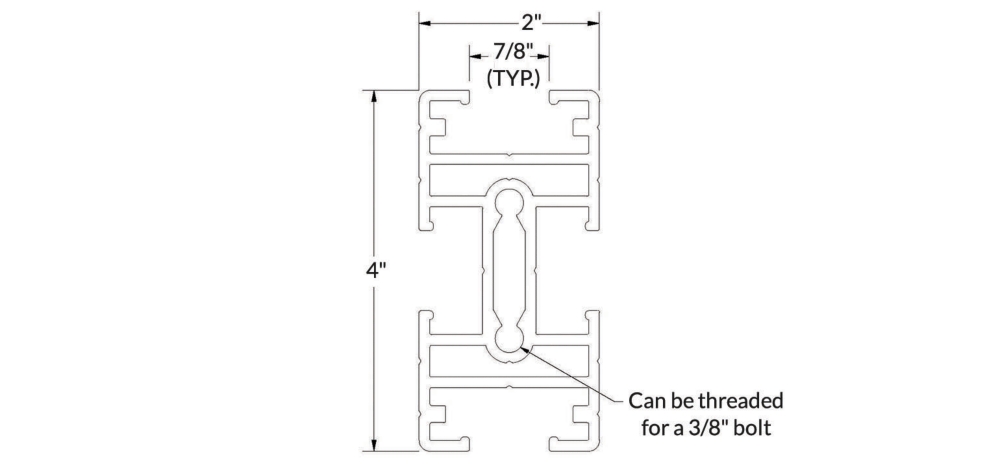

Robust 2" x 4" extruded high-strength aluminum profile.
- Long spans without internal support means no shadows or obstructions.
- Suitable for stages and scenic elements.
- Clean elegant look fits in retail or architectural environments.
Accepts strut-nut attachment on all four sides.
Center profile can be threaded for 3/8" bolt or threaded rod.
Anodized matte black

If you are looking for a frame for scrims, bobbinettes, and lenos to deal with hourglassing, see our Rose Brand Stretcher Frame System.

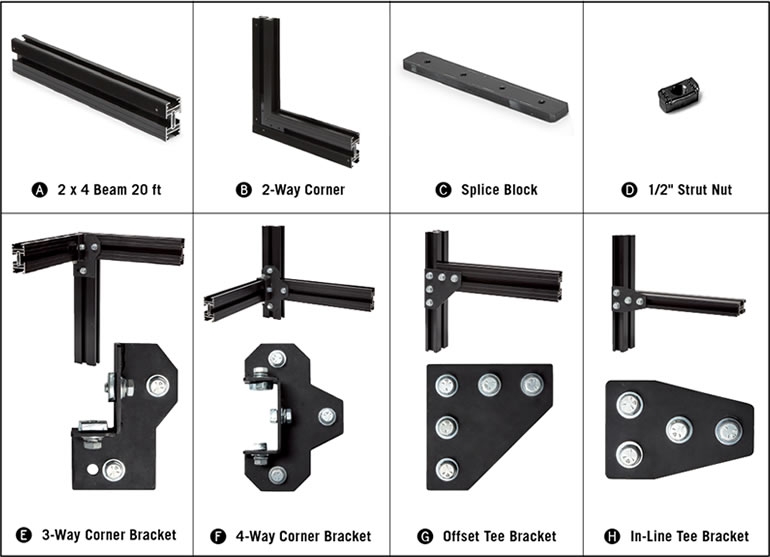

SpanFrame™ Components (Call For Pricing)

A	2" x 4" Beam, 20'-0" lengths
B	2-Way Corner 18" x 18"
C	Splice Block
D	1/2" Strut Nut
E	3-Way Corner Bracket
F	4-Way Corner Bracket
G	Offset Tee Bracket
H	In-line Tee Bracket
