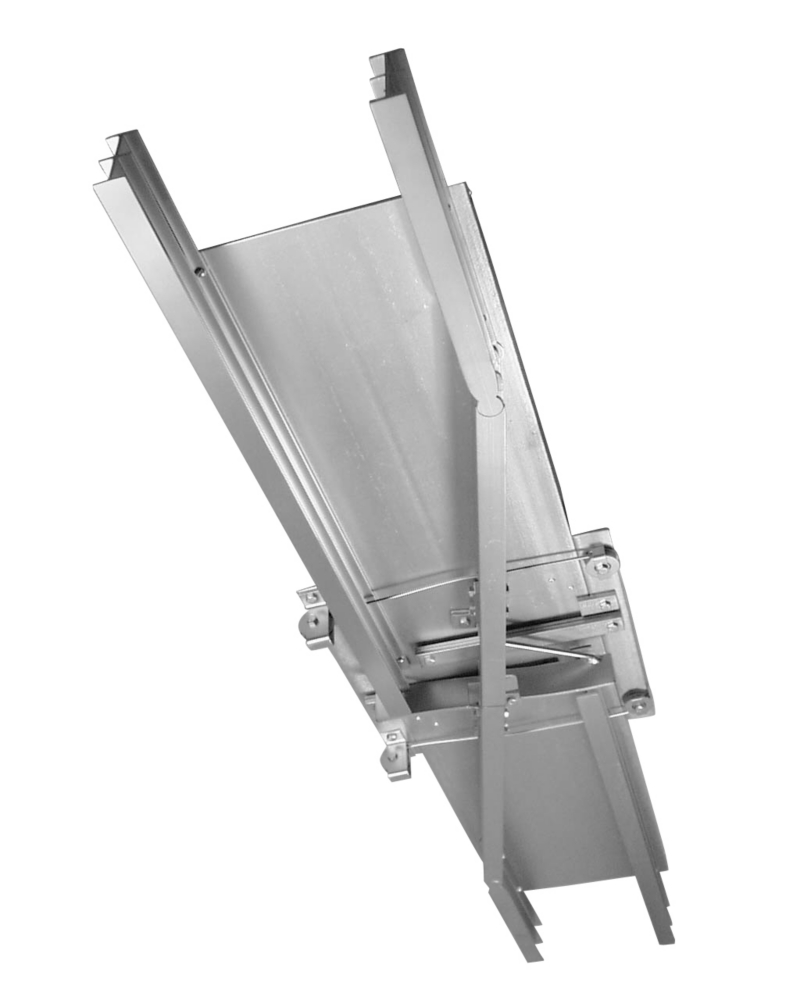

These switching devices are designed for cyclorama applications where it is necessary to move curtains from an "outer" track to an "inner" track (or vice versa) in a perimeter system. Simply by pulling down on a pendant, the track is shifted and the curtain(s) can them be moved from the inner track to outer track or visa-versa, making the standard 2 track perimeter systems used in studios, even more flexible. This switch is currently available for the Model 1400 track only. Standard track spacing is 8". Option 6" or 12" spacing available upon request.

SPECIFICATIONS:

Switch bases shall be constructed of painted, machined 1/8" steel. Switches shall be equipped with Model 1400, 11-gauge extruded aluminum I-beam track milled for precise alignment in either switch position. Base plate of device shall be 1/8" steel machined to allow plate and attached track to freely move from position 1 to position 2. Operation of switch shall be via 1/8" 7 x 19 wire center operating cable attached to two (2) painted steel weights. Steel operating cable shall pass over two (2) ball-bearing equipped steel sheaves secured to steel base of switch via steel mounting straps and hardware. Mounting base shall be equipped with openings for attachment to overhead structural members (unit cannot be flush mounted to ceiling).
