Triple E Erail Curtain Track System
Erail is compact, strong and quiet. A low-profile extrusion superbly engineered for strength and versatility. Triple E carriers with ball raced, nylon wheels make it practically silent. Erail is ideal for cruise ships, small stages, conference centers, hotels, schools, and places of worship. Suitable for light and medium weight stage curtains.
- Medium duty curtain track system.
- Custom curvable at the factory to a radius as small as 20 inches.
- Low profile.
- Quiet operation, with overlap carriers for bi-parting curtains.
- Walk-along, corded or motorized.
Available in one-piece extrusions up to 20’-0” that are easily spliced. Erail can be specified for straight track, bi-parting or curved configurations and mounted with clamps, rods or ceiling brackets. A T-slot at the top of the extrusion gives you limitless options to meet the unique requirements of your installation. Erail can be factory curved to a minimum radius of 20”. Cord guides are necessary when rigging curved tracks.
Ordering a track system for drapery or scenery may seem daunting, but we are here to help. Get great advice and pricing by submitting a request for a Custom Track System Quote online. Once your quote request is submitted, a Rose Brand expert will contact you to guide you through the selection process. You can also contact us at 800-223-1624 or email.
E-RailCategory
Compare Products
You have no items to compare.
Showing 21-40 of 42
close
Suspension Bracket for Curved Erail, ERL1702
Suspension bracket for cord operated curved track.
Studding, M8 X 150mm (5-7/8") for Erail
Erail Studding, M8 X 150 mm. Fits into the top channel slot of Erail track.

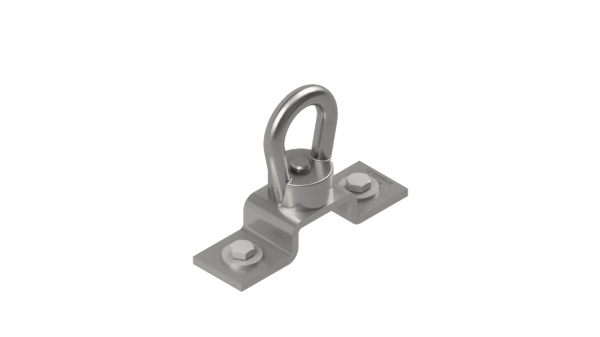

Track Triple E Erail Deadline Fixing
Used to suspend track sections by rope cordage or wire rope. It comprises of a forged fitting.
Wall Bracket for all Triple E Tracks, TRA1601
Used to attach the track to a wall or vertical surface. Requires 12mm studding.
Head Pulley Cord Guide for Erail, ERL1901
Aligns the operating cord with the head pulley on straight and curved corded systems.
Line Pickup for Erail, ERL2501
Used to support the return / non-working side of the operating cord on straight tracks
S Drive Motor Kit for Straight Erail
Kit for straight Erail. Kit includes SDrive, pendant, limit switch and cable.
S Drive Motor Kit for Straight Erail with Offset Overlap
Kit for straight offset overlapping Erail. Includes SDrive, pendant, limit switch and cable.
S Drive Motor Kit for Curved Erail
Kit for curved Erail. Kit includes SDrive, pendant, limit switch and cable.
S Drive Motor Kit for Curved Erail with Offset Overlap
Kit for curved offset overlapping Erail. Kit includes SDrive, pendant, limit switch and cable.
T Drive Motor Kit for Straight Erail
Kit for straight Erail. Kit includes TDrive, pendant, limit switch and cable.
T Drive Motor Kit for Straight Erail with Offset Overlap
Kit for straight offset overlapping Erail. Includes TDrive, pendant, limit switch and cable.
T Drive Motor Kit for Curved Erail
Kit for curved Erail. Kit includes TDrive, pendant, limit switch and cable.
T Drive Motor Kit for Curved Erail with Offset Overlap
Kit for curved offset overlapping Erail. Kit includes TDrive, pendant, limit switch and cable.

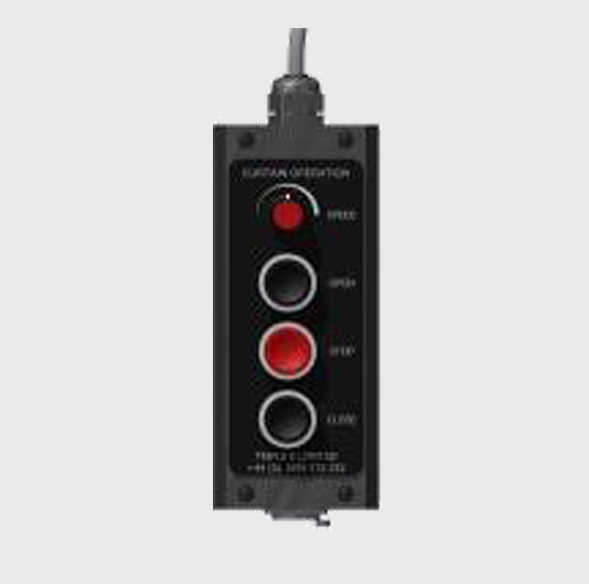

Pendant w/ O, C, S buttons and Speed Adjustment
For SDrive and TDrive motors. The functions are open, close, stop and variable speed.

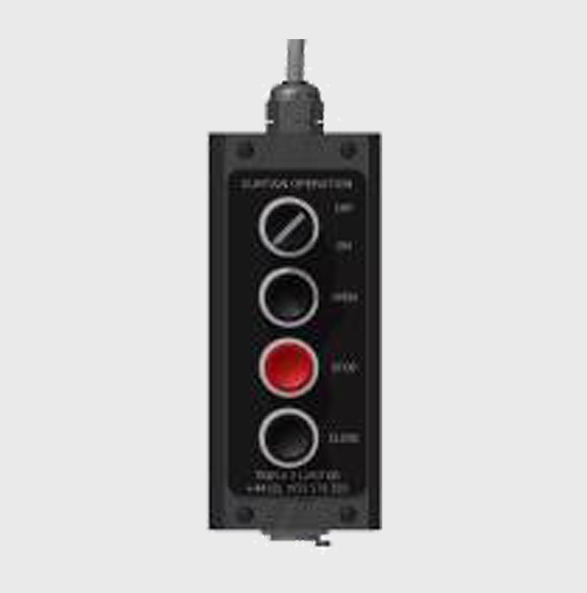

Pendant w/ O, C, S and Key Switch
For SDrive and TDrive motors. The functions are open, close, stop, and a key switch.
