ADC 140 Curtain Track Rig-I-Flex® Series
Model 140 Rig-I-Flex® track is a versatile aluminum I-Beam style track system, ideal for curved or straight, medium weight curtains. It is suited for installations anywhere a curved system is desired. Track can be curved in the factory or on the job site, to a minimum radius of two feet.
- Medium duty I-beam.
- 11 gauge extruded aluminum.
- Mill finish or black anodized finish.
- Custom curvable at the factory or on site.
- Switchers available for complex configurations.
- Walk-along, cord driven, or motorized.
Ordering a track system for drapery or scenery may seem daunting, but we're here to help. Get great advice and pricing by submitting a request for a Custom Track System Quote online with your best guess on specs. Once your quote request is submitted, we'll contact you to guide you through the selection process. You can also contact us at 800-223-1624 or email. See more info below the products for sale on this page.
140 Series Rig-I-FlexCategory
Compare Products
You have no items to compare.
Showing 41-60 of 69
close
Pipe Clamp for 1-1/4" Pipe, 1714
Medium duty pipe clamp for 1-1⁄4" pipe. (1.66" OD) Requires hanging clamp. (not included.)
Pipe Clamp for 1-1/2" Pipe, 1715
Medium duty pipe clamp for 1-1⁄2" pipe. (1.9" OD) Requires hanging clamp. (not included.)
Inverted Wall Mount Bracket, 1483-INV
Wall mount for all ADC track systems closer to the ceiling than when using other wall mounts.
Universal Wall Mount Bracket, 1483-UNI
Universal wall mounting bracket for all ADC track systems.
Double Track Hanger, 1482
Mount for 2 suspended tracks. Ceiling brackets are required to attach to I-beam tracks.
Reverse Spindle, 1458-R
Guides operating cord around curves for systems using overlapping master carriers.
Overlap Idler Bracket, 1460-A
Used to guide the operating cable through a curved center overlap.
90º Curve for Rig-I-Flex® Track 24" radius, 1492
1'-0" of straight track on each side of the curve. 2 splice clamps are included.
90º Curve for Black Rig-I-Flex® Track 24" radius, 1492-BL
1'-0" of straight track on each side of the curve. 2 splice clamps are included. Black.

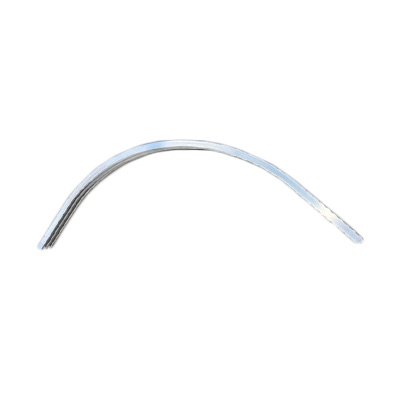

90º Curve for Rig-I-Flex® Track 36" radius, 1493
1'-0" of straight track on each side of the curve. 2 splice clamps are included.

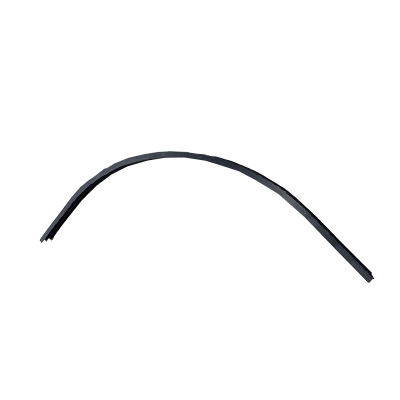

90º Curve for Black Rig-I-Flex® Track 36" radius, 1493-BL
1'-0" of straight track on each side of the curve. 2 splice clamps are included. Black.
Rotodraper for Rig-I-Flex® Track, 14
Rotodraper pivot device. Used for changing the position of side legs.

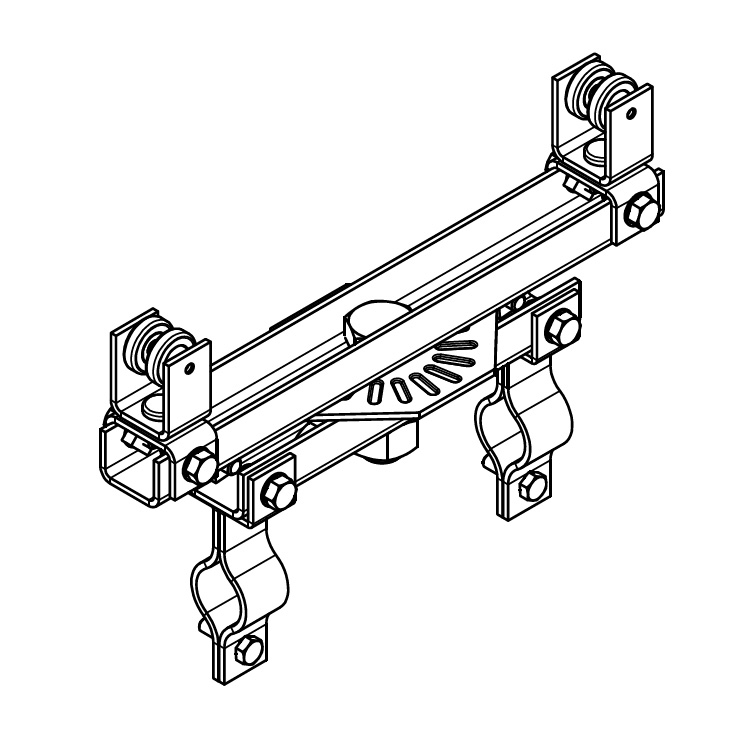

Indexed Rotodraper for Rig-I-Flex® Track, 14-A
Rotodraper pivot device with index plate. Used for changing the position of side legs.
Rotodraper with Brake for Rig-I-Flex® Track, 14
Rotodraper pivot device. Used for changing the position of side legs.

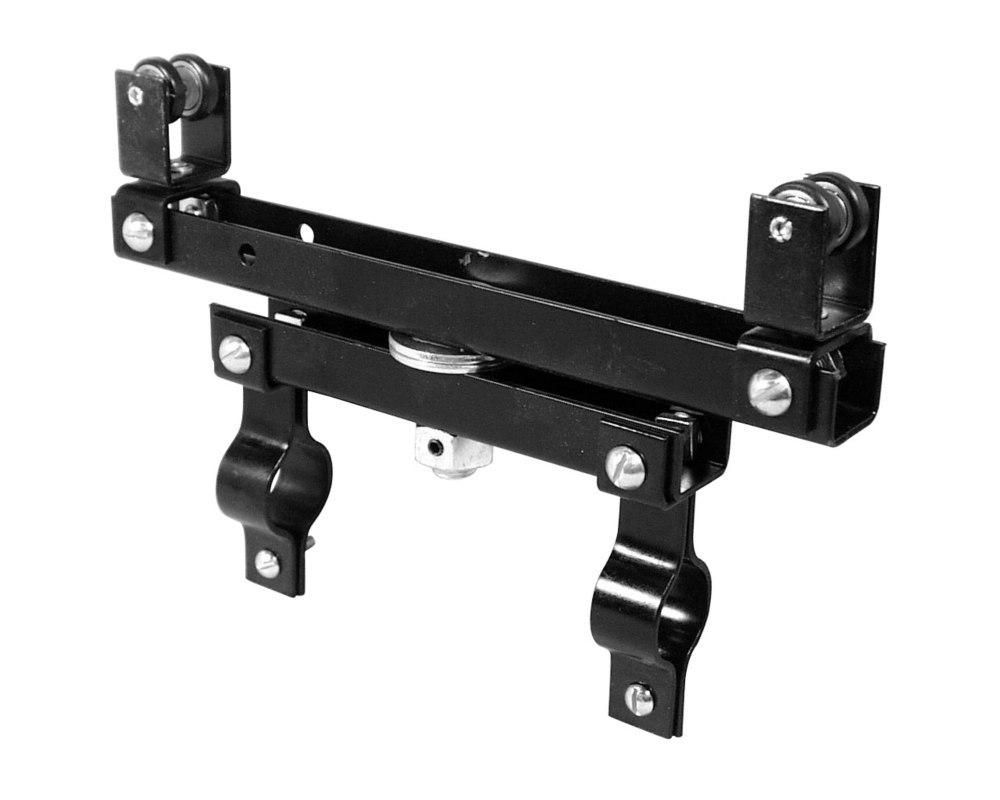

Indexed Rotodraper with Brake for Rig-I-Flex® Track, 14-A
Rotodraper pivot device with index plate and brake. Used to change the position of side legs.
ADC 140 Track Additional Considerations
Model 140 track systems use idlers and spindles to guide the operating cord along the curved path of the track. Curved tracks require more force than straight tracks and so we recommend motorized operation of curved systems. For complex installations, multi-track switchers are available to route curtains into different configurations and locations, making this system well suited for television studios and production stages. Specifications, drawings, installation, and support documents can be found in the 140 Series Submital Binder and 140 Series Installation Instructions
