Tuck Track DIY Frames
Invisible. Easy to Customize & Install. Cost Effective.
Tuck Track framing provides a quick, easy and affordable solution for wall or ceiling mounted graphics and fabric panels. The frame is completely hidden by the fabric, giving you a clean "infinity pool" edge, and it can accommodate virtually any linear shape and size. Tuck Track is intended for permanent installations. However, new or replacement fabric panels can be installed into existing Tuck Track frames.
How It Works
The Tuck Track DIY system uses plastic frame extrusions, which are cut to size in the field and can easily be notched around obstacles such as doorways, air conditioning ducts and switch plates. The fabric panels require no sewing or precise sizing. Rather, your oversized printed fabric is pressed into a friction-tight slot around the perimeter and then trimmed to final size once installed and properly tensioned.
Where appropriate, acoustical batting can be installed behind the fabric panels to dampen unwanted sound reflections and reverberations in the space, yielding excellent NRC and SAA ratings. The track is available in 1/2 inch, 1 inch and 2 ‐1/8 inch height variations, which allow for different thicknesses of batting.
Cost Effective
The Tuck Track DIY system is highly cost effective. It is light weight and can be configured and mounted easily. If you’d like to change the look, simply pull out the existing printed fabric and replace it with another.
CALL FOR MORE INFO OR TO ORDER 800-223-1624.
Tuck Track DIY Parts
Top Load
Track

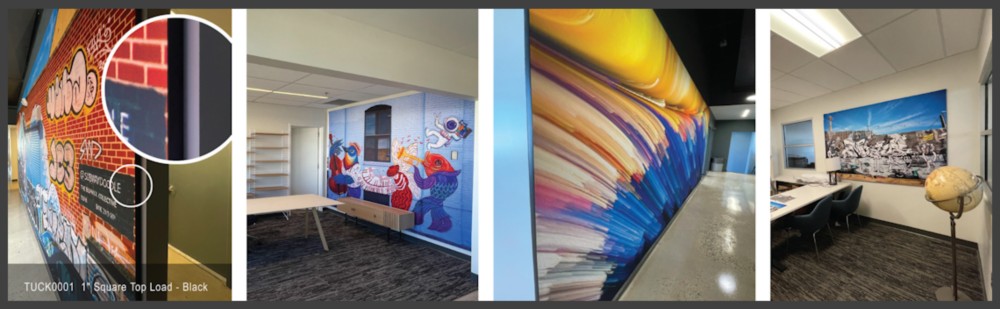

Top Load Track
Can be used directly against a side wall since the fabric installs without requiring access to the side of the track, or where a floating panel is desired.
TUCK0010 ½" Square Top Load - Natural
TUCK0009 ½" Square Top Load - Black
TUCK0002 1" Square Top Load - Natural
TUCK000l 1" Square Top Load - Black
TUCK0015 2-⅛" Square Top Load - Natural
Bottom Load
Track
Bottom Load Track
Used to wrap the frame in the printed fabric, hiding all evidence of the frame. A minimum space of 12" around the perimeter is recommended to allow for installation.
TUCK0013 ½" Square Bottom Load - Natural
TUCK0007 1" Square Bottom Load - Natural
Mid Wall
Track
Mid Wall Track
Used when printed panels need to be seamed together. Individual fabric panels are installed, unsewn, then pressed into the track of this common internal frame member.
TUCK0012 ½" Square Mid Wall - Natural
TUCK0011 ½" Square Mid Wall - Black
TUCK0004 1" Square Mid Wall- Natural
TUCK0003 1" Square Mid Wall - Black
TUCK0016 2-⅛" Square Mid Wall- Natural

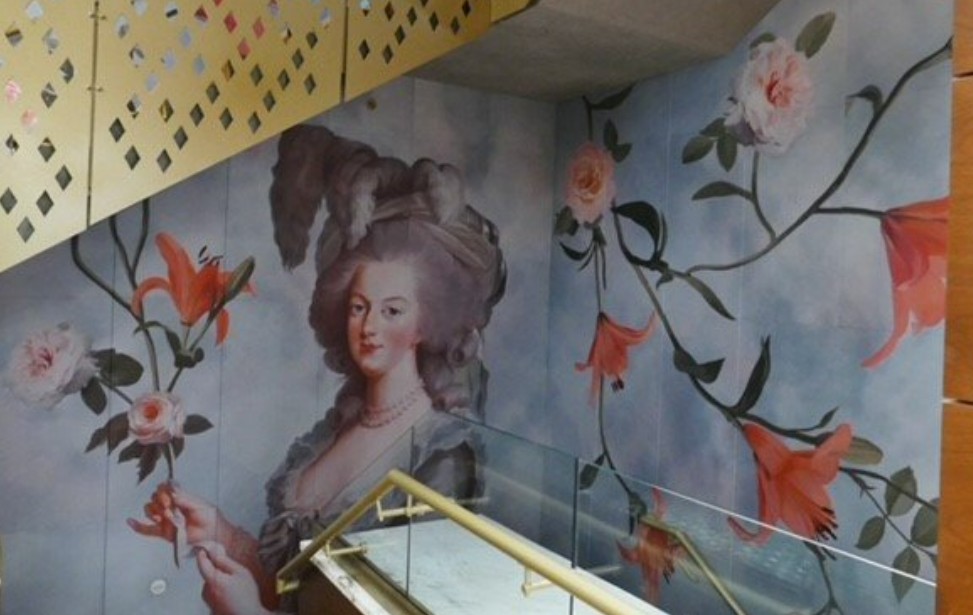

CASE STUDY: Broadway's James Earl Jones Theatre Offices
Custom Printed, Acoustically Insulated, Fabric Panels Invisibly Framed With Tuck Track.
Tuck Track was a key element in transforming Broadway’s Court Theatre into the James Earl
Jones Theatre. The designers envisioned a printed wall treatment that would extend seamlessly from the basement through
the 3rd floor. READ MORE about how Rose Brand used Tuck Track to accomplish the design and control the acoustics of this large open lobby space.
