The 2904, 2905, 7004 and 7005 are drum-drive draw curtain machine in a floor-mount platform that typically mounts beneath the track’s live-end pulley. will operate with any ADC track. Great for mid to large front-of-house curtains when motorized operation is desired. These include the Simplici-T Drive for power and control or the upgraded for Axis1 Network control. These drum drive machines are either 1/2 hp (2904 & 2905) or 1 hp (7004 & 7005) for the largest curtains. The 2905 and 7005 machines are equiped with a large-capacity grooved drum (8” x 12”) that allows for up to 90 feet of one-way cable travel or 180 feet bi-parting.
The Simplici-T Drive provides programmable variable speed motion for smooth starts and stops with curtain travel speed up to 86 feet per minute for the standard drum machines and up to up to 72 feet per minute for the large-capacity machines. The 2904S, 2905S, 7004S and 7005S feature A rotary limit switch to provide preset stops for the curtain, onboard push button controls and push button pendant for remote operation with optional wall mounted pendant with key lock for clean installation in finished spaces.
Networked with an Axis1 Controller, the 2904N, 2905N, 7004N and 7005N have fully programmable positions, speed, and cueing, allowing coordinated motion and scenes with all machines on the Axis1 Network. Programming and control is also possible from a lighting desk connected to the Axis1 Controller allowing for complete automation and lighting integration.
The data below relates to the specific color or size that is selected (or shown) at the top of this product page.
Product Information
Name

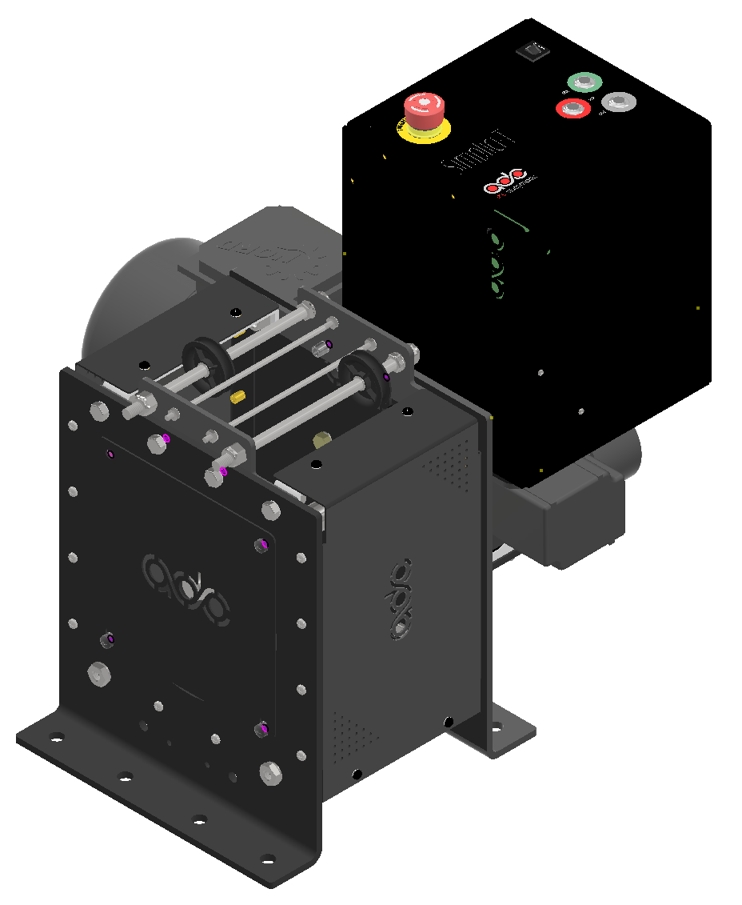

2904S ADC Draw Machine - 45ft Cable Drum 1/2 HP Floor Mount - Simplici-T Drive
Part No.
AMDM0001
Color Family
Black
Size
45'-0" drum
Features
Manufacturer
ADC
Physical
Weight
1424 Ounce
Pkg Weight
89 Pound
W x L x H
19.5"W, 18.5"L, 21.52"H
Power
Voltage
120-240 1Φ VAC or 208/230 3Φ VAC
Horsepower
1/2 HP
Speed
86 fpm
