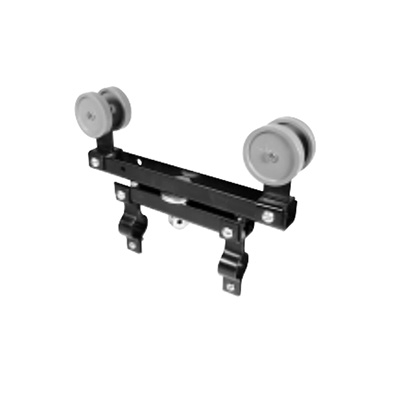

The Model 28-A Rotodraper® can be used with Model 2800 TRACK. Rotodraper® pivot devices are used for changing the position of curtains on tormentors, side legs, backdrops and cycloramas. The effect is easily accomplished either by turning the curtain itself or by fastening a towline to the curtain pipe and pulling the tow line until the curtain is in the desired position. The pivot device is unique because it requires no implement to secure the curtain to its proper position. The Rotodraper® is simply installed and easily manipulated to any angle desired including a full 360° turn.

Model 28-A, includes an index plate and spring-loaded roller latch which secures the device at 15 degree intervals and helps to prevent accidental rotation.

Brackets formed of 11 gauge steel. Can support 75 lbs. maximum weight. Two Pipe Clamps supplied (clamps for 1" pipe are standard). Two No. 400-C Clamps provided for connecting towlines to the curtain pipe. All Rotodrapers® are provided with dedicated type end stops.

Pipe to support the curtain is NOT included with any Rotodraper® and must be purchased separately.
