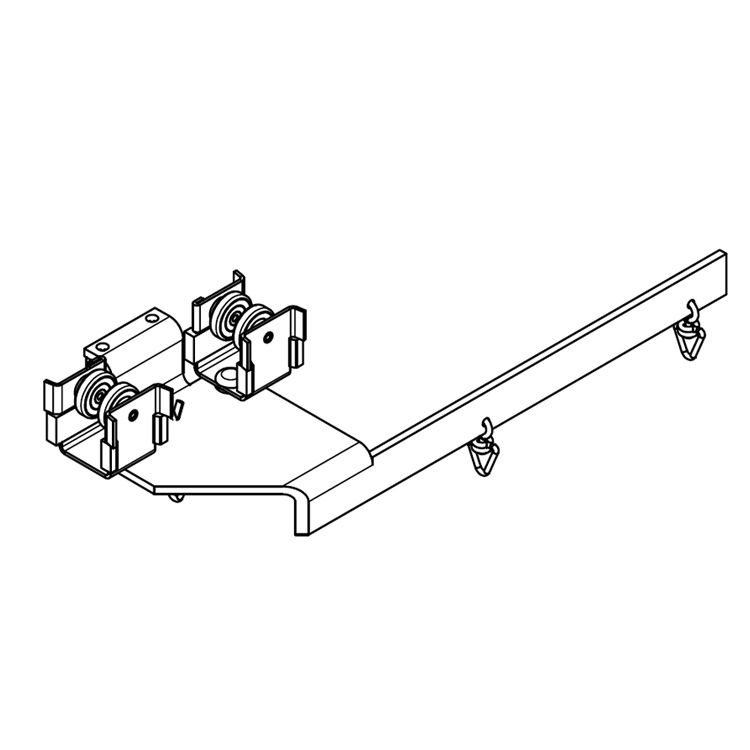

Master carrier with extension arm to allow curtains to overlap at track center, for bi-parting systems, using a single track in place of 2 overlapped track sections. This carrier can also be used with one-way draw systems to hide the end pulley when the curtain is closed. This carrier provides a fixed overlap of 12" in front of 12" when 2 carriers are used in a bi-parting operation. The plated steel swivels are spaced 6" on center.
Plated steel body supported from 4 nylon-tired ball-bearing wheels. Snap-on nylon spacers attached to the body, helps reduce noise and friction during operation. Pivoting body allows this carrier to easily maneuver curved track systems.
For cord driven continuous curve track use one 1402-A-OLR and one 1402-A-OLL. In other circumstances use two 1402-A-OLL.
